Ca6140 Bed Lathe for Metal Processing Manual Turret Lathe Machine

Product Description

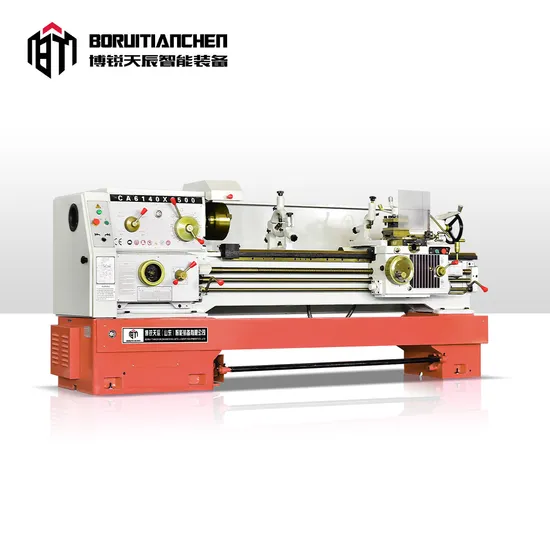

CA6140 Gap Bed Lathe
Technical Parameters

Type	CA6140(B)	CA6150(B/C)	CA6161(B/C)	CA6166(B/C)	CA6180(B/C)
	CA6240(B)	CA6250(B/C)	CA6261(B/C)	CA6266(B/C)	CA6280(B/C)
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. swing in gap	630mm	720mm	830mm	880mm	1020mm
Max. effective length in gap	210mm
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25×25 mm
Main spindle motor	7.5kw(10HP)
Spindle
Spindle speed	16--1400rpm(24step)
Spindle bore	52mm (B:80mm),(C:105mm)
Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed	(64 kinds)(for each)
Range of metric threads	(1-192mm) (44 kinds)
Range of inch threads	(1-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle centre hole	1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm	2440×1140×1750mm
Overall dimensions for 1000mm	2700×1140×1750mm
Overall dimensions for 1500mm	3200×1140×1750mm
Overall dimensions for 2000mm	3700×1140×1750mm
Overall dimensions for 2200mm	4030×1140×1750mm
Overall dimensions for 3000mm	4800×1140×1750mm
Overall dimensions for 4000mm	5680×1140×1750mm
Weight (kg)
Overall dimensions for 750mm	2100	2170	2300	2400	2520
Overall dimensions for 1000mm	2200	2260	2380	2580	2720
Overall dimensions for 1500mm	2380	2450	2577	2830	3000
Overall dimensions for 2000mm	2750	2800	3000	3050	3300
Overall dimensions for 2200mm	2800	3000	3150	3400	3500
Overall dimensions for 3000mm	3300	3500	3600	4000	4220
Overall dimensions for 4000mm	3500	3800	3950	4600	4900
