V-1000 Dry Powder Mixing Machine & Mixer
Basic Info.
Model NO.
V-1000
Certification
ISO
Condition
New
Stirring Type
Gravity
Working
Convection Mixer
Volume
1000L
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Continuous Operating
Transport Package
Veneer Case
Specification
ISO9001, CE
Trademark
DEVELOP-MC
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
500 Units/Year
Product Description
V-1000 Dry Powder Mixing Machine & MixerFeatures:
Reference Standards: JS/0198-2008

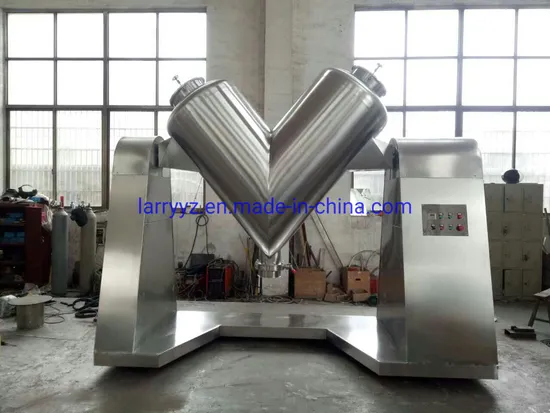

This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing
Technical parameters:
| Type | Barrel Capacity (L) | Effective Capacity (L) | Effective Capacity (Cubic feet) | Feed Volume coefficient | Max Feed weight (KG) | Mixing speed (rpm) | Mixing time (min/batch) | Net weight (kg) | Overall size (mm) | Motor Power (kw) |
| V-50 | 50 | 20 | 0.71 | 0.4-0.5 | 14 | 30 | 6-8 | 100 | 1500*500*1260 | 0.75 |
| V-100 | 100 | 40 | 1.41 | 0.4-0.5 | 28 | 15 | 6-8 | 200 | 1870*550*1400 | 1.1 |
| V-150 | 150 | 60 | 2.12 | 0.4-0.5 | 40 | 12 | 6-8 | 250 | 2000*750*1700 | 1.5 |
| V-200 | 200 | 80 | 2.83 | 0.4-0.5 | 55 | 12 | 6-8 | 300 | 2000*840*1750 | 1.5 |
| V-300 | 300 | 120 | 4.24 | 0.4-0.5 | 80 | 12 | 6-10 | 350 | 2210*1040*1900 | 1.5 |
| V-400 | 400 | 160 | 5.65 | 0.4-0.5 | 112 | 12 | 6-10 | 400 | 2210*1040*2000 | 2.2 |
| V-500 | 500 | 200 | 7.07 | 0.4-0.5 | 140 | 12 | 6-10 | 450 | 2500*1200*2420 | 2.2 |
| V-700 | 700 | 280 | 9.90 | 0.4-0.5 | 190 | 12 | 6-10 | 650 | 2500*1350*2600 | 3 |
| V-1000 | 1000 | 400 | 141.34 | 0.4-0.5 | 280 | 12 | 8-15 | 800 | 3050*1200*2500 | 4 |
