1420-1530MHz 10W Data Link Ensures Efficient Video Transmission and Data Reliability for Uavs

Product Description

1420-1530MHz 10W Data link Ensures Efficient Video Transmission and Data Reliability for UavsProduct Description

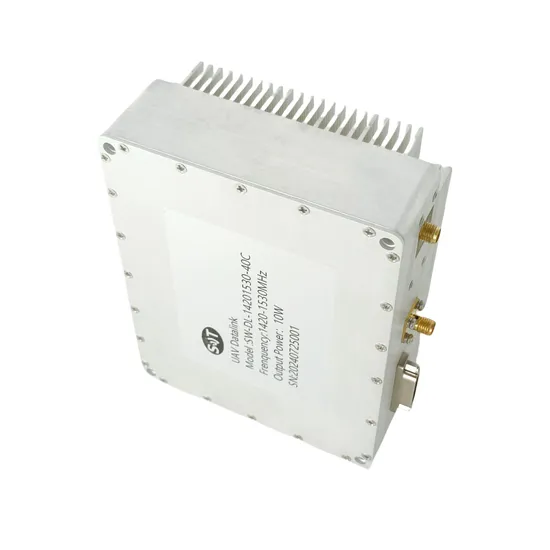

The SW-DL-14201530-40C is a 10W data link power amplifier designed for military and commercial applications. It supports a frequency range of 1420 to 1530 MHz and offers modulation methods such as CoFDM (QPSK, QAM16, QAM64 TDD). This amplifier provides a maximum wireless transmission rate of 25 Mbps and supports point-to-point, point-to-multipoint, and star network configurations. It measures 128 x 100 x 46 mm, uses forced air cooling, and includes over-temperature protection. Product Parameters

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Working frequency band	1420		1530	MHz
Channel bandwidth	1.4/3/5/10/20			MHz
Modulation method	CoFDM (QPSK/QAM16/QAM64) TDD			--
Output Power		40		dBm
Platform speed	700 km/h
Range	Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing
Networking mode	point-to-point, point-to-multi-point star network			--
Data interface	1 network ports + 1 serial port			--
Wireless transmission rate	maximum 25Mbps, shared by all nodes in two-way transmission			optional
Antenna interface	2 SMA connectors			--
Operating Voltage		24		V DC
Currents			1.4	A

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Working frequency band	1420		1530	MHz
Channel bandwidth	1.4/3/5/10/20			MHz
Modulation method	CoFDM (QPSK/QAM16/QAM64) TDD			--
Output Power		40		dBm
Platform speed	700 km/h
Range	Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing
Networking mode	point-to-point, point-to-multi-point star network			--
Data interface	1 network ports + 1 serial port			--
Wireless transmission rate	maximum 25Mbps, shared by all nodes in two-way transmission			optional
Antenna interface	2 SMA connectors			--
Operating Voltage		24		V DC
Currents			1.4	A

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp.	-40	+70	°C
Storage Temp.	-40	+80	°C
Amplifier Safeguard Temp.	+90		°C
Protections	With over temperature protection

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE:			--
TRIAD CABLE PART NUMBER:			--
NUMBER	interface type		DESCRIPTION
X1		SMA-FK	RF IN
X2		SMA-FK	RF OUT
X3		Power Supply	+24V Power Supply & Ethernet interface & UART
