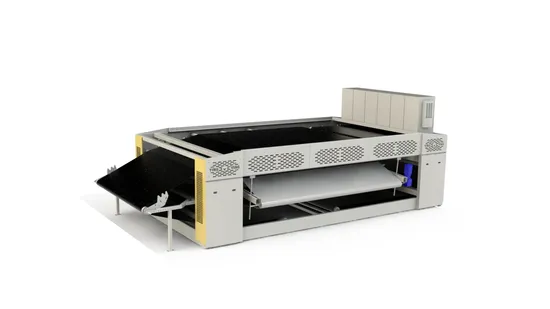

Safe and Environmentally-Friendly 2500-7600 Output Apron Width Non Woven Double-Belt Cross Lapper

Product Description

Safe and Environmentally-friendly 2500-7600 Output Apron Width Non Woven Double-Belt Cross Lapper
Product Description
function:
A higher speed unit to fold and plate the webs from carding machine evenly into the required weight and thickness and then to feed the batt to the next procedure.
Main specification:

input apron width	to match the card width
output apron width	2500-7600
lapping speed	≤70m/min
product evenness	CV≤4%
installed power	42kw

Characteristics:
(1)The machine adopts advanced servo motor arive and utilizes special servo motion control linkage.
(2) The machine has the function of transverse profile for a good evenness in cross direction.
(3) The machine use lifetimeanti-static light weight lattice transmission system with good lateral stiffness and high conductivity.
(4) The unit has a high quality and profiled frame with high rigidity and not easily deformed.
(5) This machine employs unique rectify control with high sentivity.
(6) Reciprocation uses high strength synchronized belt drive units.
(7) The machine running is stable and low noise with long service life.
(8) Conveying and transmission lattices utilize pneumatic control with constant tension,auto pressure settings and alarm functions giving safe and reliable operation.
