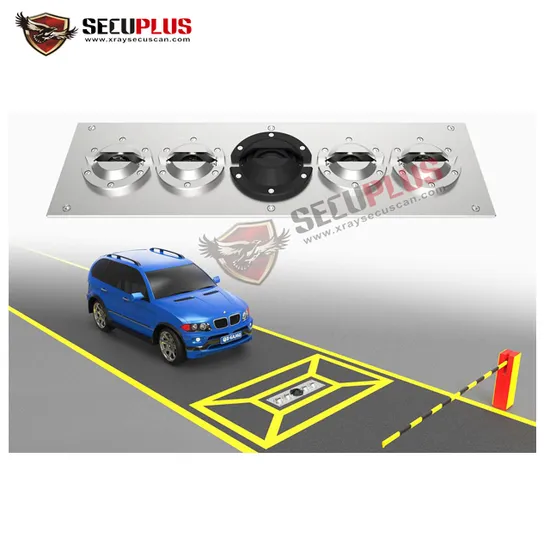

Permanent Under Vehicle Scanner Fixed Car Undercarriage Bomb Detector for Bank Entrance SPV-3300

Product Description

Permanent Under Vehicle Scanner Fixed Car Undercarriage Bomb Detector for Bank Entrance SPV-3300
Features:
1. Multi entrance management model, management, and statistics of entering and exiting vehicles
2. Auto digital line scan, high-resolution undercarriage imaging.
3. High automation, easy to be used
4. Applicable to variety of vehicles, wide vision.
5. Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 . Undercarriage image can be stored, retrieved, searched or compared with other images.
7. Avariety of image processing methods: enlarge, stretching and cutting.
8. ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.(Optional)
Advantage of UVIS under vehicle scanner:
1. No need to park vehicle, can bear speed below 50km/h
2. Whole image display ion monitor
3. Operator can zoom and save image
4. SAFE HI-TEC Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
5. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
6. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources
General Specifications:

Features	Automatic digital line scan camera, with high-resolution and clarity of the image. The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter. Preparation of inspection processes to meet a variety of on-site needs. Multiple scene image monitoring, recording function. Multi-language user interface design. Strong scalability to easily achieve a variety of system linkage control. ALPR(Automatic Licence Plate Recognition) (Optional) Multiple devices networked control functions(Optional)
General Specifications
Technical parameters	Embedded screening parts: Camera: Sensor: line scan CCD Resolution: 5000*2048 pixels Power Supply: 24VDC, 3A Illumination: LED, Power Supply: 24VDC,150W Size: 1200mm x 350mm Storaging Temperature Range -25 degree to +70 degree Controller: Input: 2 channels induction coil Output: 1 Channel switch type 12VDC Communication port: RS485, Ethernet(Optional) Operating Temperature: -10ºC to 55ºC
System host
System host	Brand: Grantech (UFO6377H-SP1-953) CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher Memory:2G( optional 4G) Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine Hard Disk:SATA2 Hard Disk 500G Dual LAN (At least one Intel Gigabit) USB2.0 (Up to 4 pieces) Monitor: 22inch LCD, resolution up to 1920*1080 Scene Video Record: 4 channel, Compression algorithm of scene video: H264

RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
