0.7mm to 1.2mm Customized Corrugated Roof Sheet Forming Deck Machine

0.7mm to 1.2mm Customized Corrugated Roof Sheet Forming Deck Machine

US$45,000.00-72,000.00 1 SET (MOQ)

Basic Info.

Model NO.
YX50-232.5-930/960 DECKING
Customized
Customized
Usage
Floor
Color
Customized
Thickness
0.7mm to 1.2mm
Yield Strength
300MPa-550MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
15 Sets/Month

Product Description

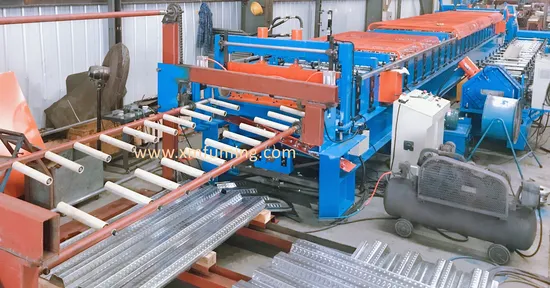

ROLL FORMING MACHINE FOR YX50-232.5-930/960 DECKING PROFILE
Material Specification
Thickness 0.7mm to 1.2mm
Effective width 930mm/960mm
Feeding width Approx.1219mm/1250mm
Material GI
Yield strength 300MPa-550MPa
Machine Components
5Ton*1250mm Hydraulic Decoiler
Coil inner hole expanding Hydraulic system, 3KW pump motor
Speed regulating Frequency inverter, 3KW motor
Expanding type Taper wedge expanding system
Load capacity Max.5Tons
Coil inner diameter 510±30mm
Coil outer diameter Max. 1600mm
Coil width Max.1250mm
Stop/start rotation Automatic stopping device with limited switch to assist
Hydraulic Pre-shearing Device
Hydraulic Pre-shearing device, manual control
Only for cutting the first piece and the end piece of the sheet
Roll Forming Machine
Driving system Gear/sprocket
Forming station 26 stages
Roller material 45# steel, CNC lathes, hard chrome coated
Shafts Diameter Φ95mm
Main motor 15KW×2
Line speed of rollformer Approx. 18m/min
Hydraulic Cutting Device
Cutting type Slug breaker
Cutting tool material Cr12, heat treatment
Hydraulci pump motor 5.5KW
PLC Control System
Function Control the quantity & cutting length automatically
PLC Siemens
Touch screen Siemens
Inverter Schneider
Encoder Omron
Cut-to-length tolerance ≤±2 mm
Control Voltage 24V
12 Meters Stacker One unit
