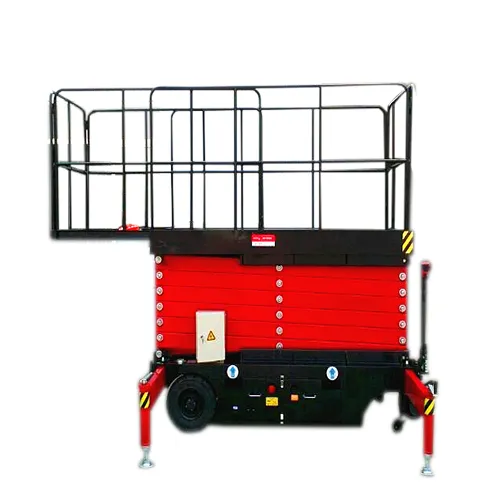

12m Self Propelled Manganese Steel Scissor Lift for Maintenance
| US$6,618.00-7,059.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJY0.45-12
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001, QC Issued by Gov.
Max Platform Height
12m
Max Working Height
14m
Rated Load
450kg
Platform Size
2.30*1.12m
L*W*H
2.75*1.40*2.66m
Voltage
AC380V/50Hz
Weight
1920kg
Delivery Time
15 Days or Rush as Requested
Warranty
12 Months Apart From Man-Made Faults
Color
Red and Black or According to Request
Transport Package
Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
Specification
1920kg
Trademark
BOONAI
Origin
Xiangcheng District, Suzhou
HS Code
8428909090
Production Capacity
20 Units Per Month
Product Description
Self-propelled Scissor Lift1.Made of wide section manganese steel providing more stability
2.Lifting Inching control for lifting and lowering, ground / platform control mode could be switched.
3.Control voltage: DC 24V
4.Equipped emergency lowering device, enable safe lowering when power off
5.Double contactors and double limit switches are provided
6.In chassis is slide-out engine tray, convenient for maintenance
7.Forklift pockets are made for transportation
8.With self-propelled device,easy steering
Standard Configuration
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button
Optional Configuration
1.AC220V(For Max 12m platform),DC
2.AC-DC,manual hydraulic pump
3.Italian hydraulic system
4.Explosion proof electric control system
5.Rubber solid tire
6.Extension platform
7.Electric moving device
Parameters
| Model | SJY0.45-5 | SJY0.45-6A | SJY0.45-6B | SJY0.45-8 | SJY0.45-10 | SJY0.45-12 |
| Max Platform height(mm) | 4900 | 5900 | 6000 | 8000 | 10000 | 11800 |
| Min Platform height(mm) | 900 | 980 | 1080 | 1200 | 1360 | 1480 |
| Platform Size(mm) | 1450*600 | 1700*750 | 2300*800 | 2300*800 | 2300*1120 | 2300*1120 |
| Rated Load(kg) | 450 | 450 | 450 | 450 | 450 | 450 |
| Voltage(V/Hz) | AC380/50 | AC380/50 | AC380/50 | AC380/50 | AC380/50 | AC380/50 |
| Travel motor(Kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Motor Power(Kw) | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Overall Dimensions(mm) | 1700*750*2080 | 2100*900*2160 | 2750*1050*2260 | 2750*1050*2380 | 2750*1400*2540 | 2750*1400*2660 |
| Extended outrigger size(mm) | 1400*1400 | 1650*1650 | 1800*2270 | 1800*2270 | 2250*2270 | 2250*2270 |
| Overall weight(kg) | 520 | 720 | 1270 | 1420 | 1770 | 1920 |
