Agricultural Cotton Tractor Driven Trailer Tank Fog Machine Agricultural Sprayer

Product Description

Products Description
Boom Sprayers
Boom sprayers from Shuoxin are an excellent way to start spraying with a tractor of any size. Shuoxin offers 3-Point Sprayers for smaller tractors with category 1 hitches and for larger tractors with category 2 hitches. The ability to raise and lower the spray boom directly from the tractor makes adjusting the sprayer's boom height very quick and simple. 3-point sprayers can be ordered PTO shaft driven pumps to mate to almost any tractor on the market today.

Details Images

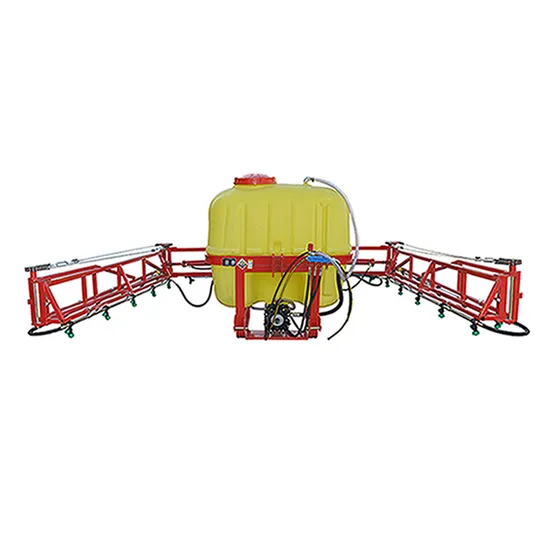

Front Side
Tank volume from 400 L to 1200 L, spraying width up to 24 Meters/79 Feets, the user could choose the specific model according to the actual working status.
Back Side
A Boom Sprayer usually has multiple spray nozzles spread out along arms (booms), pointed directly down. Boom Sprayers can go on the back of your tractor,as a tank and boom combination attached to the 3 point linkage of your tractor. Boom sprayers also have specialised nozzles for different jobs so be sure to do your research so you know you have the right tools for the job.
Manual Open Boom Sprayer Models

Manual Open Boom Sprayer Models

PTO Shaft
PTO Shaft with plastic cover
Diaphragm Pump
Branded Diaphragm pump with 3/4/6 cylinders available
Water manifold
Water Three valve manifold plastic and alloy material available, Internal jet agitator covered.
Line strainers
Self-cleaning pressure line strainers
Stainless Steel Bom and Plastic Nozzles
The Water Boom is stainless steel, thickness 1.5mm, Strong enough to avoid drop & leak.
Wash Tank
Wash Tanks are available.
3 point suspension type
Strong Three-point suspension system, use best steel part to hold the compact designed frame.
Ground auxiliary wheel
Ground auxiliary wheels are available to help moving the sprayer.
Product Paramenters

Model	3WPX-400-8	3WPX-500-12	3WPX-600-12	3WPX-800-12	3WPX-1000-12
Tank capacity(L)	400	500	600	800	1000
Dimension(mm)	1880*1140*1240	2700*1100*1300	2700*1100*1440	2700*1140*1500	2700*1000*1530
Horizontal range(M)	8	12	12	12	12
Working pressure	0.8-1.0mpa
Pump	Diaphragm pump
Matched Power(HP)	40		50	60
Rated Flow(L/min)	60-80		80-100

Why Boom Sprayer?
With the characteristics of large spraying width, great capacity, and high efficiency, the mounted boom sprayer is the ideal machine for medium and large tractors. It has high working pressure, and large flow, and is easy to be operated and maintained. This sprayer is greatly used to prevent and cure plant diseases and insect pests in gardens or on the fields of Soybean, Wheat, Corn, Rice, Cotton, or Potatoes.
A Boom Sprayer usually has multiple spray nozzles spread out along arms (booms), pointed directly down. Boom Sprayers can go on the back of your tractor,as a tank and boom combination attached to the 3 point linkage of your tractor. Boom sprayers also have specialised nozzles for different jobs so be sure to do your research so you know you have the right tools for the job.
Our Advantages

Self-cleaning pressure line strainers

1.5mm thickness stainless steel boom body

Frame, blower and other Iron components are Spray-painted

Polyethylene tank with hydraulic jet agitation

Clean water hand wash safety tank

External tank level sight gauge

Hinged tank lids with strainer baskets

In tank chemical mixer

Branded diaphragm pump

Large, easy-to-access suction strainer

Stainless steel boom pipes

Nozzles: Three head transfer nozzles are available

Standard PTO shaft with cover

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.
