10 Inch Industrial Android/Linux Tablet PC with Quad Core Processor for Smart Farming V12r

Product Description

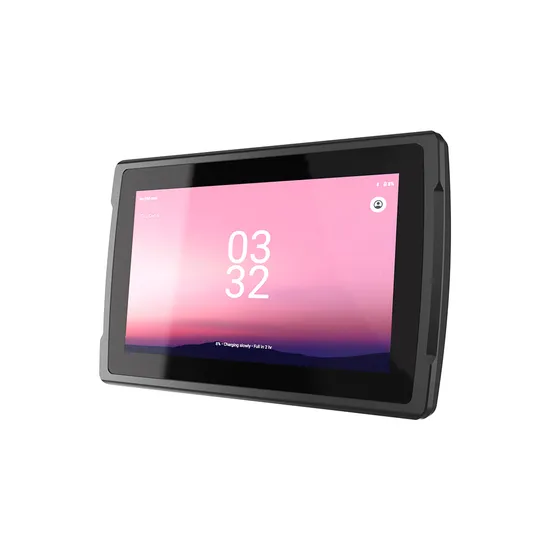

10 Inch Industrial Android/Linux Tablet with Quad Core Processor for Smart Farming V12R
Detailed Photos
V12R serial tablet powered by Qualcomm Processor, 1000nits higher brightness display, rugged design at IP67 rating, high-precision GPS and high speed 4G network, optional Front camera and rear camera NFC, barcode scan, fingerprint recognition. Supporting part of MDM platform, support custom OTA upgrade, KIOSK mode.
10.1 inch IPS Panel, 1280*800 resolution and 1000nits higher brightness, makes V12R tablet sunlight visible with better end user experience, especially for out-door used.
V12R is certified by IP67 rating, which is to soak for 30 minutes in a water depth of 1 meter. It can also work normally in harsh environments.The rugged design have improved the reliability and stability of the tablets, and extend the service life, thereby reducing hardware costs.
The CAN Bus data reading is important for fleet management and agricultural intensive cultivation. V12R can support data reading of CAN 2.0b, SAE J1939, OBD-II and other protocols. It is convenient for integrators to read engine data and better improve vehicle data collection capabilities.
The tablet built in 8000mAh Li-on replaceable battery, which can be quickly installed and removed, it can help you improve maintain efficiency and reduce after-sales cost. Make a better user experience.
V12R tablet supports high-precision GPS positioning system. It can play a great role in agricultural intensive farming and fleet management. A positioning chip with good performance is necessary for MDT.
V12R serial tablets are suitable for fleet management, agricultural intensive farming, and Intelligent Transportation systems.
Product Parameters Features 1.Equipped with Rockchip RK3568 Processor, low-power consumption; 2.Android 12+ Linux dual systems, compatible with a variety of applications; 3.Standard WIFI 5, BT 5.0, optional 4G and data radio communication modules; 4.Peak brightness up to 700 nits, offering unparalleled clarity in bright outdoors; 5.GPS / GLONASS / Beidou and RTK high-precision positioning systems are available; 6.Multiple interface options covering AHD / TNC / SMA / Deutsch interfaces; 7.Supports 6V to 36V wide voltage input, catering to diverse vehicle charging needs; 8.IP67-rating, compliant with ISO 16750 road vehicle performance testing standards.

System Configuration
Operating System	Android 12 + Linux Dual-System
CPU	Standard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz.
GPU	Mali-G52-2EE
Memory	RAM: 4GB (Optional 8GB) ROM: 64GB (Optional 128/256GB)
Display	Type: HD Size: 10.1-inch 16:10 Resolution: 1280*800 IPS Brightness: 700cd/m²
Touch Panne	Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H
WIFI	Band: WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G + 5.0G (5.1G + 5.8G) Dual-band WIFI Others: Supports AP seamless roaming
Bluetooth	BT 5.0 isochronous channels feature BLE_125K -104 dBm
4G (Optional)	LTE Cat 4 WCDMA: B1+5+8 TDD: B38+40+41 FDD: B1+3+5+7+8+20+28
GPS	Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz)
Data Radio (Optional)	Frequency range: 410-470MHz
Material	282*181*31mm
Dimension	TBD
Product Color	Black
Buttons	Power *1 Customizable * 1 (F1 Key) Customizable * 1 (F2 Key)
Wide-Voltage Power Supply	6-36V (DC input, supports ignition detection)
ACC	Supports delayed power on/off switch
Speaker	3W Single Speaker
Microphone	Single MIC
RTC	Built in 2032 RTC dry battery
G-Sensor	Built in
Functional Modules
CAN	Supports 2 CAN channels Supports 250K / 500K CAN Supports common agricultural machinery, engineering vehicle protocols such as J1939
	RTK High Rrecision Locating (UM 982) (Optional)
	Dual-antenna positioning and orientation Dual-antenna mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/, E5a/E5b, QZSS L1/L2/L5, SBAS
Data Radio (Optional)	Frequency range: 410-470MHz
AHD Multi-Channel Cameras	Supports up to 4 AHD cameras
Interfaces
SIM Card Slot	MICRO-SIM * 1
TF Card Slot	MICRO-SIM * 1
Standard USB-A Port / Data Transfer	USB 2.0 * 1, USB-A Port, HOST Data Transfer
Video Input	AHD*4, GX12 4-pin connector * 4
Deutsch Interfaces	26-PIN Deutsch Interfaces (Optional in the Solution)
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 85 °C
	±6kV contact discharge, ±10kV air discharge (Optional: ±8kV contact discharge, ±12kV air discharge)
	Humidity: 95% Non-Condensing
Certification	IP67, CE, CCC, MIL-STD-810H, ISO7637, ISO16750
Optional Accessories	26-PIN Deutsch Interface Functional Bus (Customized according to the solution)
	Bracket (RAM 38 * 30mm ball head)
	ACC Power Cable
	DC Conversion Cable
	Power Adapter 12V4A DC φ4.0 adapter
	GPS Vehicle Mushroom Antenna Active GPS mushroom antenna, 3-meter cable, gain of 28dBi ± 2dBi
	4G External Suction Cup Antenna
	Data Radio, External Suction Cup Antenna
	RTK Mushroom Antenna (TNC Connector)
