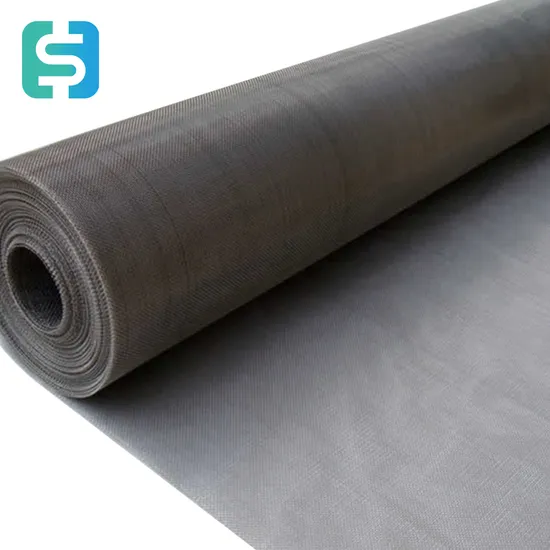

SS304/316 60 120 Welded Knitted Mesh Stainless Steel Metal Woven Wire Mesh for Filter/Sieve/Mining

SS304/316 60 120 Welded Knitted Mesh Stainless Steel Metal Woven Wire Mesh for Filter/Sieve/Mining

US$10.00-50.00 1 Roll (MOQ)

Basic Info.

Model NO.
304 316 321 430
Material
201 304 304L 316 316L 904
Hole Shape
Customerized
Application
Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Mass Transfer, Separation
Type
Customerized
Material Type
Stainless Steel Wire
Weave Technique
All Above
Wire Mesh Width
Customerized
Technique
Stainless Steel
Nickels
Customerized
Certification
ISO9001
Weave Type1
Plain Weave
Weave Type2
Twill Weave
Weave Type3
Plain Dutch Weave
Weave Type4
Twill Dutch Weave
Weave Type5
Reserve Dutch Weave
Transport Package
Standard Seaworthy Package Woven Bag or Carton
Specification
customized
Trademark
WOJUN
Origin
China
HS Code
7314140000
Production Capacity
5000 Square Meters Per Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
150.000kg

Product Description

Product Description 1.Product Description
Wire mesh is widely used in the electronics, industrial, chemical,mining, transportation and aerospace industries for filter andacoustic applications. Wire mesh is available in many differentmetals, colors, weave types, sintered and non-sintered. Mostmetal wire mesh offers great acid, alkali,heat and wearresistance.Custom materials, colors, weave types and meshcounts are available by request.
Stainless steel mesh as one of my company's leading products, over the years, we have been unremitingly introduced the international advanced weaving equipment and weaving technology, and strive to improve the quality of products. As one of the largest industrial metal mesh manufacturers in China, our goal is to continue to forge ahead and lead the world.
It is mainly used for screening and filtration under acid and alkali environmental conditions. It is used for mud mesh in petroleum industry, chemical fiber industry as screening mesh, electroplating industry as pickling mesh and gas, liquid filtration and other media separation.
2. Available Weaving Type1. Plain Weave: Also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction. 3. Plain Dutch Weave: Similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size. 4. Twill Dutch Weave: Similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size. 5. Reversed Dutch Weave: Difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
6. Rectangular Weave :Each warp is crossed above and below each weft wire, and the warp and weft are woven at a 90 degree Angle. Similar to plain weave, warp and weft wires usually have the same diameter, except that the mesh is an evenly sized rectangle.
2. Stainless Steel Wire Mesh Varieties according to materials:
Stainless Steel 304 , 304L, 316, 316L , 2205 , 2507,430, 310S, 904L etc .
3.Stainless Steel Wire mesh is classified into two kinds according to Edge types: locked closed edges open edges
Product ParametersPlain Weave Stainless Steel Woven Wire Mesh
Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inchWire diameter
(mm)
Aperture
(mm)
--Mesh/inchWire diameter
(mm)
Aperture
(mm)
2mesh1.8010.9060mesh0.150.273
3mesh1.606.86670mesh0.140.223
4mesh1.205.1580mesh0.120.198
5mesh0.914.1790mesh0.110.172
6mesh0.803.433100mesh0.100.154
8mesh0.602.575120mesh0.080.132
10mesh0.551.990140mesh0.070.111
12mesh0.501.616150mesh0.0650.104
14mesh0.451.362160mesh0.0650.094
16mesh0.401.188180mesh0.0530.088
18mesh0.351.060200mesh0.0530.074
20mesh0.300.970250mesh0.040.061
26mesh0.280.696300mesh0.0350.049
30mesh0.250.596325mesh0.030.048
40mesh0.210.425350mesh0.030.042
50mesh0.190.318500mesh0.0250.0385
Technical Note:
1. Standard roll length: 15.24m, 30m, 30.5m, 61m
2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')
3. Special sizes available at request
4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.
Twill weave
Mesh/inchDiameter(mm)Aperture(mm)-Mesh/inchDiameter(mm)Aperture(mm)
100mesh0.140.114325mesh0.0350.043
120mesh0.10.111350mesh0.0320.0405
150mesh0.090.079400mesh0.030.0335
180mesh0.070.071450mesh0.0260.0304
200mesh0.060.067500 mesh0.0250.0258
250mesh0.0450.0566600 mesh0.0180.0243
300mesh0.040.0446635mesh0.0180.022
Plain Dutch Weave
Mesh/inch
Wrap*weft
Wire diameter
Wrap*weft(mm)
Aperture
(um)
-Mesh/inch
Wrap*weft
Wire diameter
Wrap*weft(mm)
Aperture
(um)
8 X 620.63mm X 0.45mm30045 X 2500.16mm X 0.112mm56
10 X 790.50mm X 0.355mm25050 X 2500.14mm X 0.11mm53
12 X 640.58mm X 0.40mm28055.5 X 2800.14mm X 0.10mm50
14 X 880.40mm X 0.30mm18065 X 3300.11mm X 0.08mm36
19 X 1400.315mm X 0.20mm14070 X 3500.11mm X 0.08mm35
20 X 3000.35mm X 0.20mm-70 X 3850.11mm X 0.07mm32
24 X 1100.355mm X 0.25mm12078 X 7000.11mm X 0.08mm30
25 X 1400.28mm X 0.20mm10080 X 4000.10mm X 0.065mm40
30 X 1500.25mm X 0.18mm8080 X 6000.10mm X 0.06mm-
35 X 1750.224mm X 0.16mm7180 X 8000.15mm X 0.04mm-
40 X 2000.20mm X 0.14mm6081 X 7800.10mm X 0.07mm30
90 X 5500.12mm X 0.05-
Twill Dutch weave
Mesh/inch
Wrap*weft
Wire diameter
Wrap*weft(mm)
Aperture
(um)
-Mesh/inch
Wrap*weft
Wire diameter
Wrap*weft(mm)
Aperture
(um)
91 X 7870.10mm X 0.0725200 X 6000.071mm X 0.06-
101 X 9000.10mm X 0.06320200 X 8000.071mm X 0.06-
120 X 4000.10mm X 0.075-200 X 14000.071mm X 0.0412
127 X 11000.07mm X 0.0517202 X 17600.05mm X 0.03210
160 X 15000.063mm X 0.0415216 X 18600.045mm X 0.0309
165 X 4000.071mm X 0.06-254 X 20000.04mm X 0.0288
165 X 6000.071mm X 0.05-285 X 22350.036mm X 0.0257
165 X 8000.071mm X 0.0525312 X 21000.035mm X 0.025-
165 X 11000.071mm X 0.045-318 X 22350.036mm X 0.025-
165 X 14000.071mm X 0.0416325 X 23000.035mm X 0.0255
174 X 17000.063mm X 0.03213400 X 31000.035mm X 0.0193
If you did not find the mesh you want, please contact us any time. Detailed Photos
Company ProfileSuzhou Woju Environmental Protection Technology Co., Ltd. is located in Suzhou City, Jiangsu Province, is a profession al production and supply of metal regular packing - corrugated packing and mesh corrugated packing, gas and liquid filter, random packing - Pall ring and moment saddle ring, wire mesh defroster, hole plate defroster, baffle defroster and tower inner parts manufacturers.
Our company is a set of design, production, sales, installation as one of the factory company, the company from the beginning of the establishment in 2017, has been adhering to the "for customers to solve problems" spirit, sincere intersection with each customer, so that customers buy our products no longer have worries.
Our company has 80 employees, most of whom are experienced operation, maintenance and installation personnel, over the years with Tianjin University and other professional authorities to exchange cooperation to provide customers with the required tower body filtration engineering consulting and solutions. We can provide one-stop service for the design,production, transportation and installation of the whole interior of your tower.
Certifications
Welcome your inquiry and expect to provide satisfactory products and services for you.
