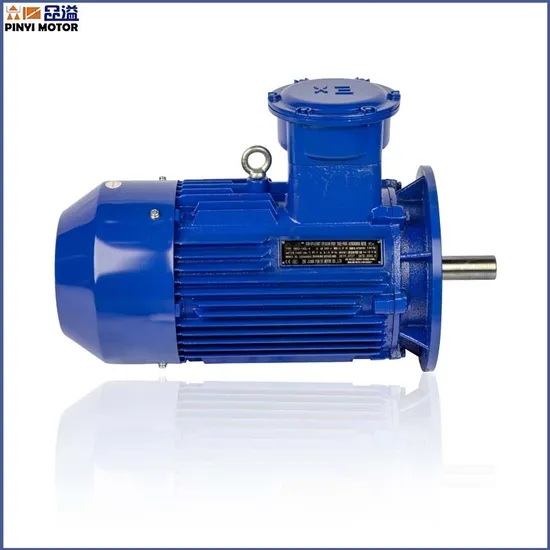

Ybx3 Series Ybx3-160L-4-15kw Explosion-Proof Three-Phase Asynchronous Motor

Product Description

YBX3 series YBX3-160L-4-15KW explosion-proof three-phase asynchronous motor
YBX3 series Explosion proof three-phase asynchronous motor has features high efficiency, low noise and vibration, smooth and reliable operation, beautiful appearance.
It is widly used in petroleum and chemical industy, coal and carbon industry, its flameproof performance is in accordance with GB3836.1 "Explosive Atmosphere Electrical Apparatus Part"1: General Requirements and "GB3836.2" Explosive Atmosophere electrical Apparatus Part 2:Flameproof Type "d" YB2 series is made to flameproof type and suitable for explosive atmosphere fields.
It is in accordance with IEC standard, and can be exported to the countries and areas that carry out IEC stardard, as well as applied to imported equipment.
From the product design to the delivery of products, follow the ISO9001 quality certification system, strict compliance with quality procedures.
Technical Parameters:

Frame Size:			80-355
Rated Voltage:			220/440V, 220/380V, 380/660V, 415V or request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.18KW-355KW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B35,V1

Zhejiang Pinyi Motor Co., Ltd is a medium-sized enterprise with a registered capital of 10 million, which integrates research, development, manufacturing, sales and after-sales service. ; In order to comprehensively consider the long-term strategic layout, and to ensure that the products continue to have comprehensive advantages in the market in 2013, the company integrated several upstream suppliers and companies, and gathered a number of scientific researchers in the important R&D links of motors to provide our company products in the terminal. The positioning of special machinery and equipment for market enterprises has laid a solid foundation; the company has integrated the original management experience into the quality management system of GB/T19001-2008 and IS09001:2008, and the products have passed CE certification to ensure the quality of Pinyi Motors Long-lasting and stable performance; the company has always adhered to the marketing concept of "manufacturing high-quality products with character, and occupying the market with high-quality products", focusing on building excellent brands, continuously improving enterprise quality, and pursuing progress and development In the course of years of development, Pinyi has built a customer-centric marketing network. Its products sell well in nearly 30 provinces and foreign regions across the country, and are well received by consumers, especially by old customers.
Pinyi's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/P55:
* YE4 Super High Eficiency Secondary Energy Efficiency Motor;
* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;
* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YVF2 Frequency conversion series three -phase asynchronous motor;
* YD2 series two-speed multi-speed three phase asynchronous motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;
* YBX3 series flameproof three- phase asynchronous motor;
* YVFEJ2 series variable frequency brake three-phase asynchronous motor,
* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,
* special motor for stone machinery and equipment, custom-made motors with special specifications for power
requirements, and motors with different frequencies and different pressures.
* The protection grades include IP55, IP66, etc. and various special motors derived from them.
In line with the principle of "customer first, integrity first', the company has established long-term cooperative relations with
many enterprises. We take the concept of making products with heart, and aim to create high-quality products and provide satisfactory services. We are determined to create perfect, attention to detail, The goal is to provide efficient and
powerful green power products.
We warmly welcome friends from all walks of life to visit, inspect, negotiate business and create billiant future together.
1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric molors.
2. Q: What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A.We are a manufacurer with advanced equ pment and experienced workers.
4. Q: What's your production capacity?
A:4000-5000 PCS/MONTH.
5. Q: Free sample Is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6. Q: Do you have any certiflcate?
A:Yes, we have CE certificate and SGS certificate report.
