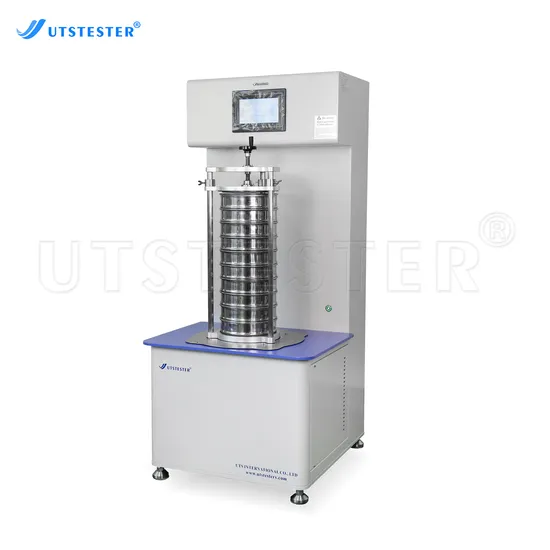

Textile Testing Machine Geotextiles Effective Opening Size Tester

Product Description

Product Description
For the determination of the effective pore size of geotextiles and composite geotextiles by the dry sieve method.
Standard

JTG E50-2006, SL 235-2012, GB/T 14799-2005, BS 6906, ASTM D4751

Product Parameters

Model	MA07N
Display	4.3 inch true color touch screen, English menu operation
Combined set of sieve specifications	Ф 198±2 mm 5 pieces
Stainless steel leak-proof sieve frame	Ф 200 * 53mm
Sieve disk specifications	Ф 200 * 45 mm 5 (receiving disk and the number of mesh screen 5 sets of 10)
Stainless steel set of sieve holding ring	Ф 198 ± 2 mm 5 only
The number of test	5 groups / times, can be done at the same time 5 groups of specimens
Rotary radius	12±1 mm
The number of vibration	147 ± 10 mm times / min
Up and down amplitude stroke	8 ± 2 mm
Time setting	0-999 hours 59 minutes 59 seconds
Power supply	AC 220V 50Hz 370W
Dimension	550×750×1010mm
Weight	160kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
