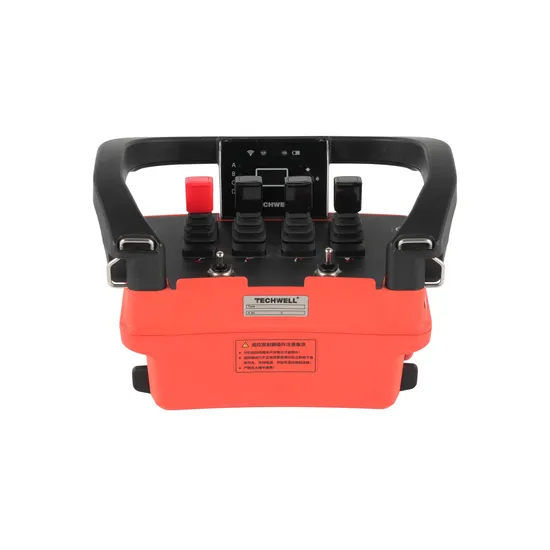

Techwell Tp400 Industrial Radio Remote Control Transmitter for Crane and Construction Equipment

Product Description

Product detail photos
Product Parameters

Transmitter parameters
Model	TP400
Size	265×171×172 mm
Weight (without battery)	1.2kg
Material	Engineering plastics
Protection grade	IP66
Power supply	7.4VDC/3000m Ah
Remote control distance	≥150m
Operating current	130mA
Output power	≤10mW
Frequency range	433MHz wave band:427.000~436.300MHz 470MHz wave band:472.350~485.775MHz
Output power	≤10mW
Frequency range	433MHz wave band:427.000~436.300MHz; 470MHz wave band:472.350~485.775MHz
Form of antenna	Built-in
Operating temperature range	Temperature: -25ºC~70ºC; humidity: 0%-97%rh; anti-condensation
Optional display	2.5/2.8"
Optional functions	Identity card, three-axis sensor

Receiver parameters
Model	MMN Series
Size	204×165×124 mm
Weight	1.7kg
Material	Engineering plastics
Protection grade	IP65
Power supply	12~30VDC
Operating current	140mA
Rated power	<10W
Contact rating	8A/250VAC
Form of antenna	External
Operating temperature	Temperature: -25ºC~70ºC;
Output method	CANOPEN, PWM signals, analog signals, switching signals
Output interface	HAN32
Optional functions	Feedback detection, acoustooptical alarms, data card
Safety standards	EN ISO 13849-1:2015 PL d

Company Profile Shanghai TechwellAutomationTechnology Co,Ltd.(hereinafterefered to as"Techwell andShanghai CaftmeterControl Technology Co, Ltd,founded in2005, isahigh-tech enterprise with adedicated R&D focuson industial wielesscommunication and control. Over the years,Techwellhasemergedasaleaderinthe field ofinteligentremotecontrol withinChina,specializinginindependent R&D,technicalconsuting.andsystemintegatonto facilitate equipment remotiation and intelligence
The R&D team,primarilycomposed ofprofessionalswith etensive experience in adio and cicuit design,mainly includes individualswith doctoral, master's,and undergraduate degrees. Additionally,theR&D personnel comprises over30% of theworkforce. Throughstrategicindustry-university-reseach collaboration with the University ofShanghai forScience and Technology, Techwellconinues todelveinto thefield of intelligent remote control, stiving to assist theindustry in achievinga moreintelligent,eficient,and secure diectionWith completeintelligentremote controlequipment and high-quality after-sales service system, Techwell hassuccesfully providedvariousspecialized intelligentunmannedremotecontrol echnology solutionsand senices toovera hundred large dometicwell-knowngroup enterprises.
At Techwell, we introduce mature production technology to constantly optimize our equipment, strengthen production processes, and integrate research and design processes to make ourselves move towards semi-automatic and automated production. Our production line follows standardized and visual management procedures, ensuring the quality of each product. We regularly train our personnel,and over 50% of our staff possess intermediate or advanced skills, giving our customers
confidence in our offerings
Feature:
·Security design with dual CPU, high protection grade, smart key;
·Feedback detection, acoustooptical alarm.
Our Advantages
Packaging & Shipping
