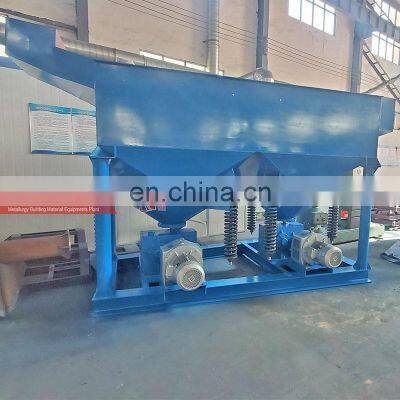

High Efficiency Mineral Processing Plant Gold Jigging Concentrator In Mining Separator Jig Machine

Product Description

Product Description
Products DescriptionHigh Efficiency Mineral Processing Plant Gold Jigging Concentrator In Mining Separator Jig MachineJig machine operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave Jig hasreached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.Iron Ore Jig Mining Separating Washing MachineCapacity: 1-20 TPH as per requested.Suitable for Material: gold ore/coltan ore/ tin ore/ tungstenore/ diamond ore/Barite ore/ iron ore/ manganese ore, ect.Jig Separator ApplicationMainly applied for placer gold , alluvia gold , tantalumniobium , titanium , coltan ore , tungsten , iron , tinhematite , cope , manganese , barite , zirconium and chromeetc concentration.When processing the open-pit mines , the saw-tooth wavejigger is a key machine with the principle of gravityseparation . Its pulse curve is like saw-tooth waveform tomake rising water faster than the dropping water ;enhanced the loose of bed . Eased the inhaled rolethat heavy particles in the mineral can fully settlementgreatly improving the sorting capacity and recovery rateof equipment.Jig machine/gold jig outlookThe top of jig machine/gold jigging/mineral jigsThere is a screen on the top. It will be covered by the steel shots and ragging. (checking the following pictures)Backside of jig machine/mineral jigThere 2 inputs for water input.Steel shots for jig machineJig bedding balls in various size.Screen for jig machineThe jig screen/sieve is the final point of separation between light and heavy particles smaller than screen aperture size.Jig's BedThe components of the jig’s bed start with a bottom bed of ragging AKA steel shots, that is normally introduced artificially, or in some cases is built up naturally by heavy mineral that were present in the ore feed to the jig.Jig machine Some Details Many competitors often the thickness of the steel plate thinner, use cheaper motor, use renewable rubber, etc, to reduce the price.Area Jig different from each model Heavy mineral deposit Famous brand high quality motorBack wash water hole Natural rubber tympanum Durable wave boxJig machine Features 1. High capacity, large range of separation size 2.High concentration ratio & high recovery 3.Fabricated with highquality material 4.Easy to install, operate & maintain 5.The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling 6.Saving water 30-40% than ordinary jig 7.The pulsation speed is easy to adjust by regulator 8.Suitable for roughing & de-sliming 9.Simple for operation and maintenanceJig machine Working PrincipleJigger machine beneficiation is one way of gravity beneficiation. It belongs to deep trough separation operations, use water as processing media, it depends on the difference of specific gravity between the mine to be select and gangue to separate mine, Theyare mostly in septum type, the stroke and time of stroke is adjustable depend on different specific gravity of mine, it’s widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metal.ModelJig area M2Feeding size mmCapacity T/HStroke R/MinHutch water T/HPressurekg/cm2Power KWWeight TJT0.57-10.57<61-2.560-1601-2>0.31.50.612JT1-11.04<104-1060-1602-30.3mpa2.20.9JT2-22.28<108-1560-1602-40.331.63JT4-24<108-1650-1253-60.17.54.6JT4-2A4<108-1650-1254-80.15.5*24.6JT5-24.86<1010-2080-1204-100.17.54.8Company Information:About HENGCHANGHengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters, including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.Customer SiteOur machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. All machine has a 1-year quality assurance. As long as the machine has any problem (non-human factors) within one year, we will repair or change with new one for free. Exhibition & customer visitHengchang - Our ServiceBefore-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.Sale services: Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.After-sale services: Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers. Solemn Promise: The quality guarantee period of machines is one year except the wearing partsTips:The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.Packing and deliveryPackaging Details:Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.FAQQ:Why we believe in Gongyi Hengchang company? A:1.More than 28 years’ experience. 2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry. 3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate. Q:Delivery time? A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability. Q:Payment terms ? A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After signthe contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery. Q:What will you do if the machine is broken down? A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply. Q:What should i do if I want to get a best quotation? A: If you want a suitable type for you, please let us know your material and capacity.
