Full Automatic Vco Extraction Used Disc Centrifuge Filtration

Product Description

Product Description
Full automatic VCO extraction used disc centrifuge filtration
1.Brief introduction:
Disc separator is a high efficiency, large output, advanced automation equipment. Suitable for low-solids suspension, the proportion of the smaller difference between the immiscible liquid separation, is the pharmaceutical, chemical, biological products, beverage products and other industries essential equipment. The principle is based on the centrifugal force of different proportion of the material by different force, so as to achieve the purpose of separation. The new advanced automatic control is the disc separator is superior to other separation equipment characteristics.
DHC self-discharging disc separator is a self-cleaning separator, it is by the inverter and PLC and a set of electrical components control slagging mode of equipment.

2.Working Principle of disc centrifuge:
DHC self-discharging disc separator can complete two operations: liquid - solid separation (separation of low concentration slurry), referred to as clarifying operation;Liquid-liquid separation (or liquid - liquid - solid) separation (separation of emulsion), referred to as the separation operation.
Disc separator is a vertical centrifuge, the drum mounted on the top of the vertical axis, driven by the motor drive and high-speed rotation. The drum has a set of disc-shaped parts that are nested with each other. There is a small gap between the disc and the disc. Suspensions (or emulsions) are fed into the drum from a feed tube located in the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) in the centrifuge under the action of sediment to the disc to form a sediment (or liquid layer). The sediment slides along the surface of the disc to be separated from the disc and accumulated in the largest diameter portion of the drum, and the separated liquid is discharged out of the drum through the outlet. The role of the disc is to shorten the solid particles (or droplets) of the settlement distance, expanding the drum settling area, the drum in the installation of the disc and greatly enhance the production capacity of the separator.

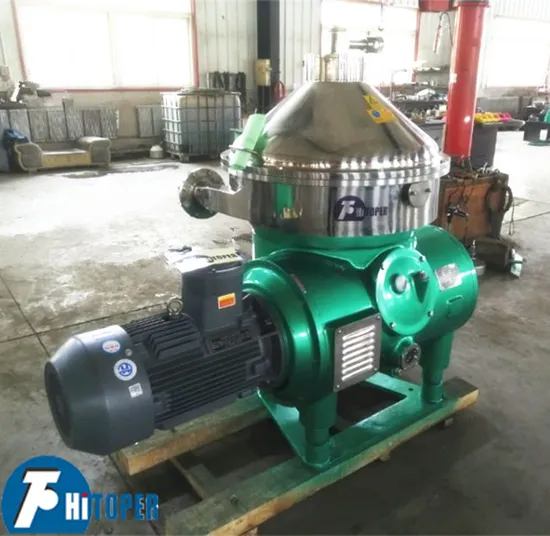

3. More photoes of disc centrifuge

Product Parameters 4.Technical data

Drum inner diameter (mm)	300	400	500	550	730
Drum speed (r/min)	8212	7070	6600	5840	4500
Settlement area (cm²)	17.2×107	27×107	63×107	76×107	90×107
Input capacity for water (L/h)	1250	3500	8000	10000	20000
Motor power (kw)	4.0	7.5	15	22	45
Weight(kgs)	580	1280	1720	2300	3400
Dimension(mm)	1050*850*1200	1495*1130*1485	1780*1500*1900	1950*1550*1960	2380*1730*2060

5. Our filter press products

Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB, SB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter plate

29. Filter cloth

30. Vacuum disc filter
Our company

Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.

Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other.
Capability:

The leading supplier of industrial equipment in China.
The professional exporter and service provider of filter and separation equipment.
Our company supplies various types of filter press,centrifuge and relevant parts.
