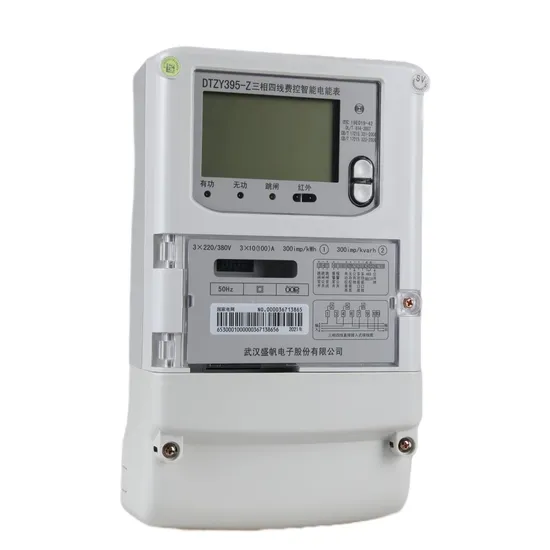

Sts PLC / RF Prepiad Three Phase Energy Meter
| US$40.00-50.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DTSY395
Color
Grey
Transport Package
Carton Packing
Specification
5(80)A
Trademark
SANFRAN
Origin
China
HS Code
9028301300
Production Capacity
150000PCS/Month
Product Description
Three phase keypad prepaid energy meterIntroduction:
DTSY395 Three phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with SanfranPay vending software directly and communicate with AMI system via LORA-RF or PLC module. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:
| ★Meter recharge by inputting TOKEN | ★Utilities can set TOU price into meter on request |
| ★Ingress protection IP54 waterproof | ★Anti-tamper magnetic field protection |
| ★Up to 8 years battery life | ★MD(maximum demand measurement) |
| ★Remote connection/disconnection | ★Low credit alarm |
| ★Real-time clock | ★Overdraft collection |
| ★Check data by inputting the short code | ☆LORA-RF communication |
Specification:
| Electrical | Nominal Voltage | 3*230V |
| Working Voltage Range | 70%~120%Un | |
| Frequency | 50-60Hz | |
| Active Energy Constant | 400imp/kWh | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25ºC-70ºC | |
| Storage Temperature Range | -40ºC-85ºC | |
| Electric Magnetic Compatibility | AC Insulation Strength | 4kV at 50Hz during 1min |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
| Electrostatic Discharges | Contact discharge 8kV | |
| Air discharge 16kV | ||
| Electromagnetic RF Field | 27MHz-500MHz 10V/m | |
| 100KHz-1GHz 30V/m | ||
| Fast transient burst test | 4kV | |
| Protection | Class II |
Parameters:
| Model | DTSY395 |
| Current(Imax) | 3*10(100)A |
| Accuracy class | Active energy: Class 1.0 |
Dimension:
Wiring Diagram:
