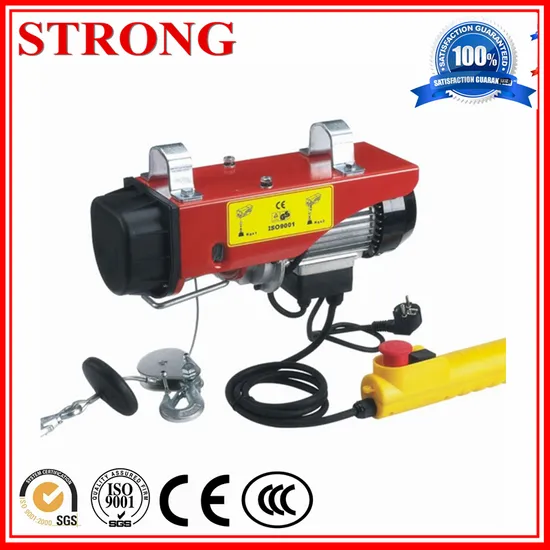

High Quality Wire Rope Portable Mini Lifting Electric Hoist

Product Description

Mini hoist can be used in factories, mines, agriculture, electric power.
Construction building site, dock and warehouse
Mini Electric Hoist Features
The PA type of mini electric hoist we produce can be used in factories, mines, agriculture, electric power, construction building site, dock, and warehouse for installing of the machines, lifting the cargoes. Loading and unloading the trucks.

The product we produced is in compliance with the national standard. The design is reasonable, the materials are of good quality, the structure is advanced, the appearance is beautiful and the size is compact, the weight is light, the hand pull force is small and the parts have high strength, big tenacity, and all these make it safe, durable. And the products are popular at home and abroad. It can be compared with the famous brand product in the world.
The main structure
1, lifting motor: the motor is alongside magnetic type one-way capacitance, the insulation class B motor design has stalling the brake alongside magnetic mechanism, the use of safe and reliable.
2, reducer: using secondary reduction gear, gear, shaft adopts high-quality steel manufacturing.After the tempering heat treatment.Motor and reducer constitute an organic whole, adopt the aluminum alloy die casting, compact structure and durable and beautiful.
3, rope drum, chassis: rope cylinder with high qualified steel plate stamping and steel pipe welded together, mounted on the output shaft, rotation wire rope lifting objects.The chassis is made of high qualified steel plate stamping, welding and into.To support the overall hoisting machine and fixed.
4, hook: choose eye hook, hook type rated lifting weight;Choose live wheel hook, double lifting weight.
5, switches, appliance, switch to second button to close the switch.Press up (increased), hand press down (down), reset when to stop.Rising objects to the limit at the same time, stop trip switches, cut off power supply, ensure the safety of operation.
Product details:

Model	Usage	Voltage(V)	Input power(w)	Capacity(kg)	Lifting speed(m/min)	Lifting Height(m)	Packing dimension(cm)	GW/NW.(kg)
PA200	Single hook	220/230	450	100	10	12	44×38×20	24/22
	Double hook			200	5	6
PA250	Single hook	220/230	500	125	10	12	44×37×25	25/23
	Double hook			250	5	6
PA300	Single hook	220/230	600	150kg	10	12	47×37×25	26/24
	Double hook			300kg	5	6
PA400	Single hook	220/230	750	200	10	12	52×45×17.5	35/33
	Double hook			400	5	6
PA500	Single hook	220/230	1020	250	10	12	52×45×17.5	36/34
	Double hook			500	5	6
PA600	Single hook	220/230	1150	300	10	12	53×45×19(2pcs)	38/36
	Double hook			600	5	6
PA800	Single hook	220/230	1300	400	10	12	53×28×35(2pcs)	40/38
	Double hook			800	5	6
PA1000	Single hook	220/230	1800	500	10	12	53×28×35(1pc)	31/29
	Double hook			1000	5	6
