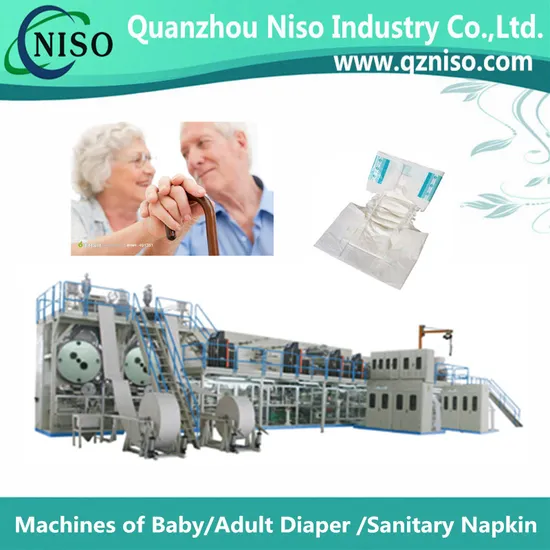

Stable Efficient Full-Servo Adult Diaper Making Machine (CNK300-SV)

Product Description

CNK300-SV Fulli-servo High-speed Adult Inco Pad Making Machine Product Description

Designed production speed	300 pieces/min
Stable production speed	250 pieces/min(or as per customers designed)
Machine power	three-phase five-wire(380V, 50HZ)
Machine capacity	about 350KW(exclude hot melt applicators and air compressor
Machine size	20.0m*7.0m*3.5m(L*W*H)(including stacker, set temporarily
Machine weight	about 70T(whole production line)
Air pressure	0.6-0.8Mpa

Quick Details
Condition: New Adult Inco Pad Machine
Product Type: Adult Inco pad Machine
Processing Type: Pulp Molding Machine
Place of Origin: Fujian, China (Mainland)
Model Number: CNK300-SV
Voltage: 380v, 50HZ, three-phase five-wire
Power(W): about 350 kw
Dimension(L*W*H): 20*7*3.5m(L*W*H)
Weight: 70Tons
Certification: ISO, certificate of utility model patent
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: Adult Inco Pad making machine
Designed speed: 300pcs/min
Stable production speed: 250pcs/min
Diaper size: S, M, L, XL
Control system: Full-servo control
Packaging system: Equipped with the stacker at the request of client
Efficient rate: ≥ 85%
Reject rate: ≤2%
Air pressure: 0.6-0.8Mpa
Detailed Photos
Main Function Features
1. Servo motors driving system with PLC control and big touch screen.
2. High -speed teeth - like crusher.
3. Web - wheel molding.
4. SAP auto adding with amount control.
5. Servo unwinding, auto - tension control and splicing for raw materials.
6. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted.
7. Phase adjusting during running without stop.
8. Diaper tri -folding or double folding.
9. Diaper auto counting & stacking.
10.'S' cutting/magic side tapes.
11. Security door equipped in operation side.
Raw materials needed for producing diapers
1. Baby diapers A-Grade: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
2. Adult diaper A-Grade: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband Company Profile
