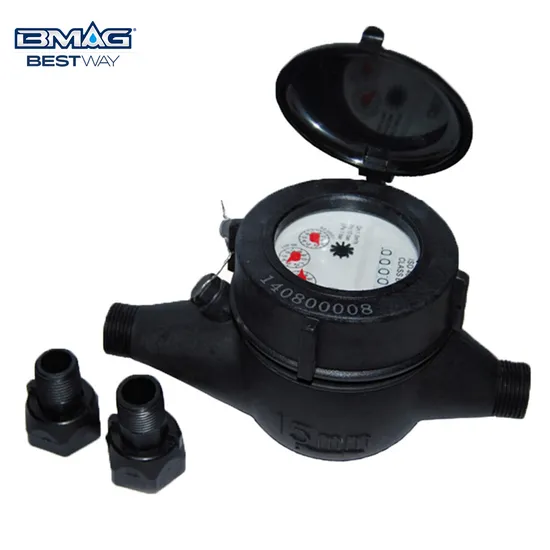

Bmag Multi Jet Dry R160 Water Meters Class C Plastic Water Meter
Basic Info.
Model NO.
MJ-SDC-E
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil, Industrial
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Product Name
Multi Jet Plastic Water Meter
Size
15mm to 40mm
Testing Pressure
100% Tested
Working Condition
.Water Temperature: ≤50oc
Transport Package
Export Carton and Pallet
Specification
15mm to 40mm
Trademark
bestway
Origin
China
HS Code
9028201000
Production Capacity
500, 000 PCS/Month
Packaging & Delivery
Package Size
25.00cm * 15.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Product DescriptionBMAG Water Flow Meter Mechanical Flow Meter Multi Jet Dry R160 Water Meters Class C Water Meter Plastic Water Meter
What description of plastic water meter:
Material | Plastic/Nylon/ fiberglass reinforced polymerization amine Body, with plastic accessories |
APPLICATION | Measuring the volume of cold potable water passing through the pipeline |
Size | DN15 to DN50 |
FEATURES | 1.Completely plastic shell, solid and robust design, long service guaranteed. 2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance. 3.Pole ring magnet polymer coating as protection against deposits. 4.The measuring mechanism can be exchanged. 5.Anti-magnet. 6.Inside calibration device. 7.Large measuring range high flow accuracy. 8.Steady curve characteristics. 9.Measuring accuracy is up to ISO4064, Class B. 10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate) |
WORKING CONDITION | 1.Water temperature: ≤50ºC 2.Water pressure: ≤ 10bar (16 bar on request) |
MAXIMUM PERMISSIBLE ERROR | 1.In the lower zone from qmin inclusive up to but excluding qt is ±5% 2.In the upper zone from qt inclusive up to and including qs is ±2% |
ACCESSORIES | Optional: Both brass thread connections and plastic thread connections are available. |
Testing Pressure | 100% tested |
Samples Time | 1) 7days - For our existing samples for reference 2) 15 days - If new size, need make the new mould |
OEM Acceptable | Yes |
Production Capacity | 100,000 pcs each month |
Packing Details | inner box, out carton and pallet. |
Payment Term | T/T ,L/C,,D/P,D/A,PAYPAL |
Delivery Time | 20 days to 40 days after confirming the order |
Minimum Order Quantity | 50 Pieces |
Measuring the volume of cold potable water passing through the pipeline.
FEATURES:
1.Completely plastic shell, solid and robust design, long service guaranteed.
2.High quality materials fiberglass reinforced polymerization amine
(WRAS approved), corrosion resistance.
3.Pole ring magnet polymer coating as protection against deposits.
4.The measuring mechanism can be exchanged.
5.Anti-magnet.
6.Inside calibration device.
7.Large measuring range high flow accuracy.
8.Steady curve characteristics.
9.Measuring accuracy is up to ISO4064, Class B.
10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate)
WORKING CONDITION:
Water temperature: ≤50ºC
Water pressure: ≤ 10bar (16 bar on request)
MAXIMUM PERMISSIBLE ERROR:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2%
