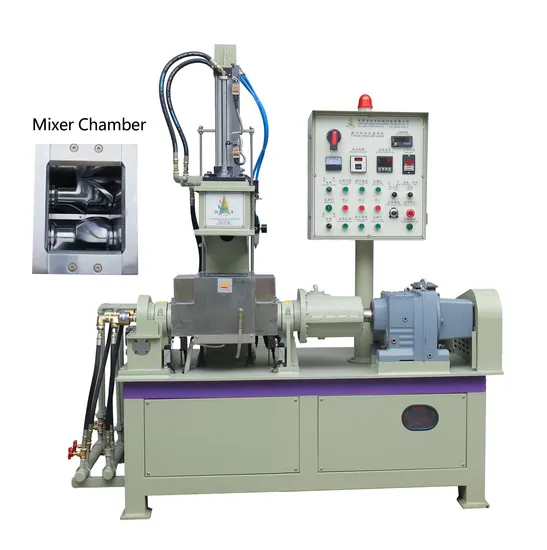

Factory Price CF-1L Lab High Precision Rubber Mixer Machine Internal Mixer Disperse Keander for Plastic Raw Material

Product Description

CF lab Kneader Size	CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Production rates in kg/batch
Output per batch	1-1.5 kg	2-3 kg	3-4 kg	4-5 kg	9-10 kg	13-15 kg
Applicable materials	Suitable for to mix the rubber and plastic raw materials.
*All rates should be factory verified.

CF lab Kneader size		CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Air Compressor Pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Power	kW	4	5.5	7.5	11	18.5	22
Max. rotor speed	RPM	40	40	40	40	40	40
Tilter Motor	kW	0.75	0.75	0.75	0.75	1.5	1.5
Tilter Angle		110	110	110	110	110	110
Heating	W	700	800	1200	1800	1900	2100
Overall weight	KG	800	1000	1100	1400	2500	2600
Length	mm	1400	1600	1800	2000	2400	2400
Width	mm	800	800	850	950	1250	1250
Height	mm	2000	2000	2050	2170	2350	2350
*All rates should be factory verified.

Anti-Leakage Technology CFine's unique anti-leakage device:
CFine's unique anti-powder leakage device adopts mechanical shaft sealing compression technology and is sealed with self-lubricating sealing ring, so that the sealing ring is always in the state of compression sealing during the mixing process. The self-lubricating sealing ring can reduce the wear and tear of the kneading system and effectively reduce powder leakage and noise.
After-sales service In-sale: Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the lates progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
