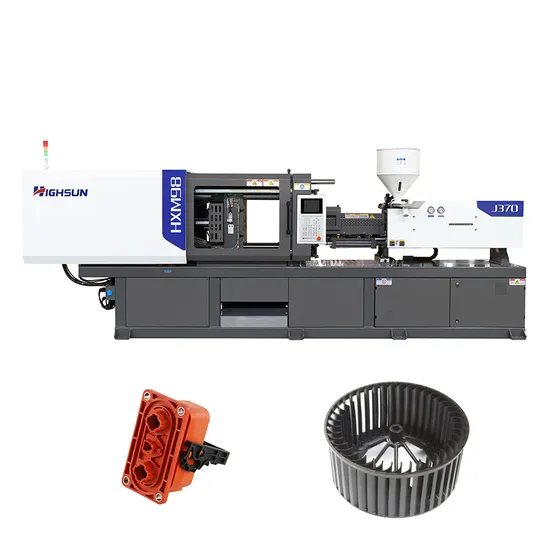

2023 Lower Price High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm98
| US$18,000.00-56,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM98
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Aviable to Service Machine
Voltage
380V/50Hz,According to Countries
Showroom Locate
Malaysia,Russia,Turkey,Uzbekistan
Condition
New
Injection Weight
140g, PS
Space Between Tie Bar
360X340
Machine Weight
2.7 Ton
Transport Package
Standard Package
Specification
4.16*1.15*1.82 M
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description
1.Picture| MODEL:HXM98 | ||||||
| TECHNICAL PARAMETER TABLE | A | B | C | D | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 32 | 35 | 38 | 40 |
| SCREW L/D RATIO | L/D | 24 | 22 | 20.2 | 19.2 | |
| INJECTION CAPACITY IN THEORY | cm3 | 128 | 154 | 181 | 200 | |
| INJECTION WEIGHT(PS) | g | 116 | 140 | 164 | 182 | |
| oz | 4.0 | 4.9 | 5.7 | 6.4 | ||
| INJECTION PRESSURE | MPa | 249 | 208 | 176 | 159 | |
| INJECTION RATE | g/s | 71 | 85 | 101 | 111 | |
| PLASTICIZING CAPACITY | g/s | 10 | 11 | 13 | 17 | |
| SCREW SPEED | rpm | 240 | ||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 980 | |||
| MOVING MOULD-PLATE STROKE | mm | 315 | ||||
| MAX. MOULD HEIGHT | mm | 390 | ||||
| MIN. MOULD HEIGHT | mm | 150 | ||||
| SPACE BETWEEN TIE-BARS (W×H) | mm | 360x340 | ||||
| HYDRAULIC EJECTOR FORCE | mm | 45 | ||||
| HYDRAULIC EJECTOR STROKE | KN | 100 | ||||
| EJECTOR NUMBER | n | 5 | ||||
| OTHERS | PUMP PRESSURE | MPa | 16 | |||
| MOTOR /DRIVING POWER | KW | 11/11 | ||||
| HEATING CAPACITY | KW | 8.2 | ||||
| MACHINE DIMENSION (L×W×H) | m | 4.16x1.15x1.82 | ||||
| MACHINE WEIGHT | t | 2.7 | ||||
| OIL TANK CAPACITY | L | 203 | ||||
2. Product Produced by Injection Molding Machine
3. Factory
4. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.
