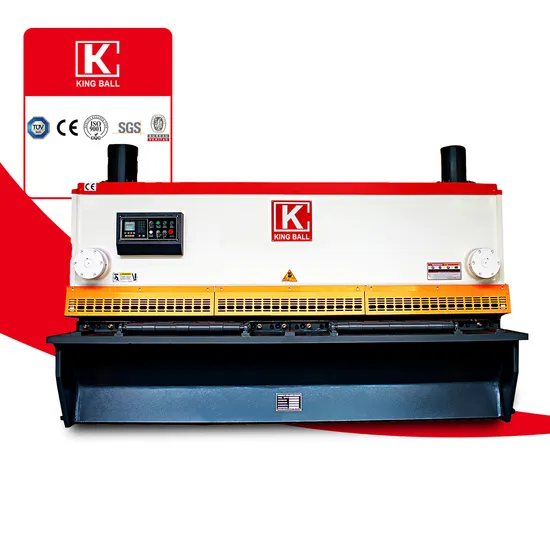

QC12K-6X2500 CNC Pneumatic Material Support E200s Controller Servo Motor Cutting Thickness Swing Beam Hydraulic Shears Machine

Product Description

Products Description
Main functions and features 1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.

Hydraulic Swing Beam Shearing Machine	QC12Y-10X2500	QC12Y-10X3200	QC12Y-10X4000	QC12Y-10X6000
Cutting Thickness (mm)	10	10	10	10
Cutting Width (mm)	2500	3200	4000	6000
Throat Depth (mm)	100	100	100	100
Cutting Angle (o)	2	2	2	2
Backgauge Range (mm)	20-600	20-600	20-600	20-800
Stroke Number (times/min)	≥10	≥8	≥8	≥6
Main Motor (kw)	15	15	15	18.5
Weight (kg)	7500	8500	9800	24000
Overall Dimensions (LxWxH in mm)	3180X1800X1700	3880X1830X1800	4850X1850X1900	6500 X2100X2300

Pneumatic Sheet Support System Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist System Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding Table Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms.Linda Zhang Customer Manager E-mal:linda@jinqiu.cc
