Anti Corrosion ASA PVC Synthetic Resin Roof Tile Machine UPVC PP PE Recycle Glazed Tile Roof Production Line Equipment Machinery

Anti Corrosion ASA PVC Synthetic Resin Roof Tile Machine UPVC PP PE Recycle Glazed Tile Roof Production Line Equipment Machinery

US$100,000.00-180,000.00 2 Pieces (MOQ)

Basic Info.

Model NO.
SJZS65
Product Type
PVC Roofing
Board Layers
Multilayer
Screw No.
Double-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Use
Roof
After-Sales Service Provided
Overseas Service Center Available
Color
Customers Requirement
Dimension(L*W*H)
7500*1700*1600mm
Showroom Location
Germany, Pakistan, India
Weight
4.5t
Name
Glazed Roof Tile Production Line
Type
Extrusion Machine
Applicable Industries
Building Material Shops, Manufacturing Plant
Key Selling Points
Automatic
Voltage
380V 50Hz 3phases
Tile Type
Colored Glaze
Transport Package
Standard Exporting Packageglazed Roof Tile Produ
Trademark
POLYTECH
Origin
Zhejiang, China
HS Code
84778000
Production Capacity
1 Set/Sets Per Year Roof Sheet Production Line

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 200.00cm
Package Gross Weight
28000.000kg

Product Description

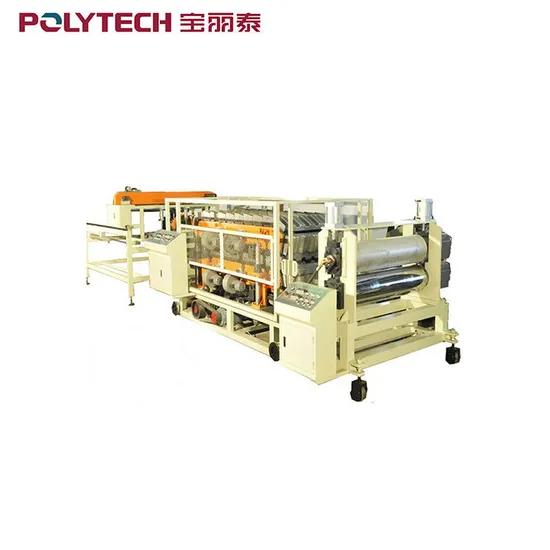

Anti Corrosion ASA PVC Synthetic Resin Roof Tiles Equipment Machinery





Raw material & Final product:

Raw material & formulation
 Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin.
Surface layer: ASA granule
Description final product & Output
 Two layers PVC+ASA Co-extrusion Glazed tile;
Output:300-400kg/h(Depending on CaCO3 proportion)
Final product
 Main tile:1set
Two layers PVC+ASA Roofing tile;
Width:720/880 /1040mm,Thickness: 2~3.0mm;
Wave distance:160mm; Wave height:28/30mm;
Wave length:220/250mm
Ridge tile:4sets


Machine list:
No.
 Machine
 Qty.
1
 Screw loader for extruder
 1set
 Glazed tile extrusion line
Ridge tile forming machine
2
 Conical twin-screw extruder(PVC)
 1set
3
 Vacuum loader and drying hopper
 1set
4
 Single screw extruder(ASA)
 1set
5
 Extrusion mould and distributor
 1set
6
 Embossing roller
 1set
7
 Temperature controller
 1set
8
 Glazed-tile forming machine
 1set
9
 Cutter
 1set
10
 Stacker
 1set
11
 Ridge tile Oven
 1set
12
 Ridge tile Forming machine and ridge tile mould
 4set




13
 Screw loader for Mixer
 1set
 Auxiliary equipment
14
 Mixer unit
 1set
15
 Crusher
 1set
16
 Pulverizer
 1set




1,Q:How to solve the problem about material leakage of high mixer quickly?
A:Replace the seal gasket or check the cylinder distance whether it is enough .
2,Q:why the low-mixer is always burned?
A:The mixture exceeds the rated capacity, causing the motor to overload.
3,Q:How to adjust the space of the screw?
A:Log in Polytech official website
Company Profile

, authorized to download the video tutorial.
4,Q:How to solve the the ASA coating problem?
A:Many reasons ,such as temperature, formulation, start-up speed etc.
5,Q:Why the material Burnt?
A:Many reasons, such as high heating temperature, heating preservation time is too long.
6, Q:Why the ASA is covering on the bottom?
A:Many reasons ,such as temperature, formulation, start-up speed does not match.
7, Q:Asymmetrical ASA2/4 area covering?
A:Many reasons ,such as temperature, formulation, start-up speed does not match.
8,Q:How to adjust the dislocation of glazed tile module?
A:By adjusting tooth on the dynamic column to achieve the right location of module.
9, Q:Why Shaping mould two side speed is not synchronization?
A:Two side shaping module is not synchronized.
10,Q:Why the Cutter machine does not move?
A:Replace the sliding bearing seat under rack or moving cylinder.
