Basic Info.
Certification
CCC, CE, ISO9001
Color
Black, Customized, Red, Yellow
Transmission Distance
50-100m
Transport Package
Per Product Is Packed in Carton with Foam Cushioni
Specification
240× 68× 54 mm
Production Capacity
50000
Product Description
Product detail photos
Product Parameters

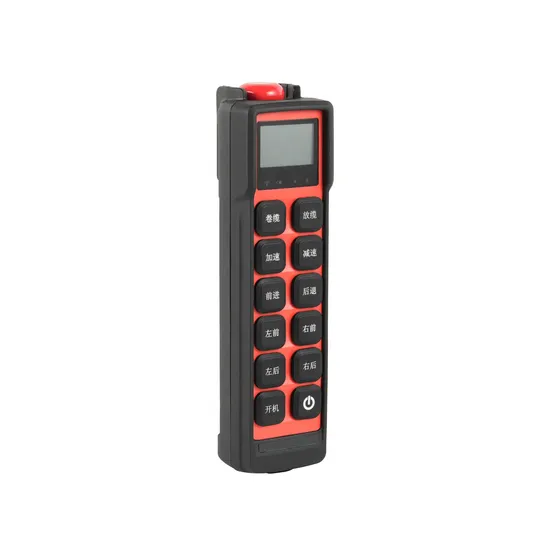

Transmitter parameters |
Model | TK200-S0BTB | |
Size | 240×68×54 mm |
Weight (without battery) | 0.33kg |
Number of button | 12 |
Materials | Engineering plastics |
Protection grade | IP66 |
Method of button | Self-resetting |
Power supply | 7.4VDC/1850m Ah |
Remote control distance | ≥150m |
Current | 80mA |
Output power | ≤10mW |
Frequency range | 433MHz wave band:427.000~436.300MHz; 470MHz wave band:472.350~485.775MHz |
Form of antenna | Built-in |
Operating temperature range | Temperature: -25ºC~70ºC; humidity: 0%-97%rh; anti-condensation |
Additional functions | Display |
Receiver parameters |
Model | MMN Series | |
Size | 204×165×124 mm |
Weight | 1.7kg |
Material | Engineering plastics |
Protection grade | IP65 |
Power supply | 12~30VDC |
Operating current | 140mA |
Rated power | <10W |
Contact rating | 8A/250VAC |
Form of antenna | External |
Operating temperature | Temperature: -25ºC~70ºC; |
Output method | CANOPEN, PWM signals, analog signals, switching signals |
Output interface | HAN32 |
Optional functions | Feedback detection, acoustooptical alarms, data card | |
Safety standards | EN ISO 13849-1:2015 PL d | |
Company Profile Shanghai TechwellAutomationTechnology Co,Ltd.(hereinafterefered to as"Techwell andShanghai CaftmeterControl Technology Co, Ltd,founded in2005, isahigh-tech enterprise with adedicated R&D focuson industial wielesscommunication and control. Over the years,Techwellhasemergedasaleaderinthe field ofinteligentremotecontrol withinChina,specializinginindependent R&D,technicalconsuting.andsystemintegatonto facilitate equipment remotiation and intelligence
The R&D team,primarilycomposed ofprofessionalswith etensive experience in adio and cicuit design,mainly includes individualswith doctoral, master's,and undergraduate degrees. Additionally,theR&D personnel comprises over30% of theworkforce. Throughstrategicindustry-university-reseach collaboration with the University ofShanghai forScience and Technology, Techwellconinues todelveinto thefield of intelligent remote control, stiving to assist theindustry in achievinga moreintelligent,eficient,and secure diectionWith completeintelligentremote controlequipment and high-quality after-sales service system, Techwell hassuccesfully providedvariousspecialized intelligentunmannedremotecontrol echnology solutionsand senices toovera hundred large dometicwell-knowngroup enterprises.
At Techwell, we introduce mature production technology to constantly optimize our equipment, strengthen production processes, and integrate research and design processes to make ourselves move towards semi-automatic and automated production. Our production line follows standardized and visual management procedures, ensuring the quality of each product. We regularly train our personnel,and over 50% of our staff possess intermediate or advanced skills, giving our customers
confidence in our offerings
Feature:
·Security design with dual CPU, high protection grade, smart key;
·Feedback detection, acoustooptical alarm. Our Advantages Packaging & Shipping
