Gpoe-Usbc-25W IEEE802.3at Compatible Gigabit Splitter Poe 25 Watt Power to Type C Device

Product Description

Product Description GPOE-USBC-25W IEEE802.3at Compatible Gigabit Splitter POE 25 Watt Power to Type C Device IEEE802.3af/at PoE Input USB-C 25 Watt Output

HDMI resolution	4k2k@60Hz/3D /1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	600MHz
Max baud rate	18Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	≤5m AWG26 HDMI standard cable
Output cable distance	≤8m AWG26 HDMI standard cable
Max working current	300mA
.Input	AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	61*55*20 (mm)

Product Description This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to USB-C standard voltages and removes power from the data - it works with gigabit data speeds. Can also work with an 802.3af switch if the ouput is used below 13 watts.
Intended for use with similar PoE switches - this PoE solution appears like a standard Class 4, 25 watt device.

The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100.
The ouput is fully isolated from the input voltage. Grounding is of no concern.
The ouput power is on a USB-C connector. The voltage is defined by a negotiation between the attached device and the GAT-USB-C. The supported voltages are
5 volts 3 amps
9 volts 2.4 amps
12 volts 2 amps
15 volts 1.7 amps
20 volts 1.3 amps
The USB-C connector offers no data - use the RJ45 for data.
Specifications Data speed 10/100/1000 mb/s
Input Voltage 802.3af / 802.3at / passive 44 to 57 volts at 600 mA max
Output Voltage determined by attached device
Internal power use 900 mw
Operating Temperature 0°C - 50°C
Data Transparent
Isolation 1500 Volts
Size 107 x 50 x 25 mm
802.3at Class 4
PoE Power input Pins 1&2 and 3&6 - either polarity - mode A
4&5 + and 7&8 minus - mode B
Shielded RJ45
Data output Shielded RJ45
Power out DC connector female USB-C
LED status on Female RJ45 Right - Power In active = Green
Left - Power out active = Amber
Related Products GAT-5V20W - Fixed Voltage
GAT-5V10W - lower power and cost
AT-4 - high power injector
GAT-Extender - long runs

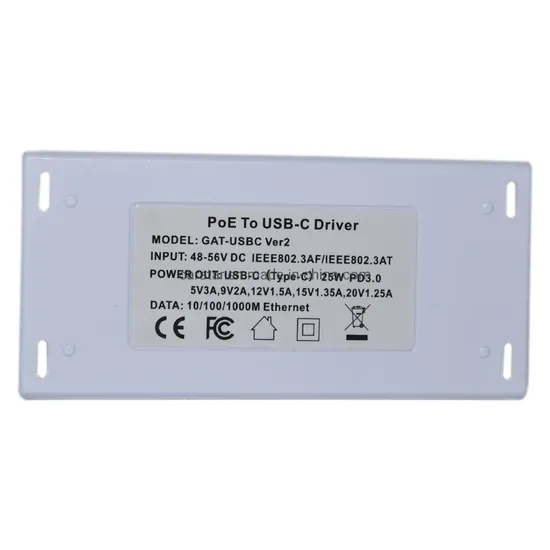

Detailed Images:
