High Speed Ribbon Blender for Dry Powder Machine
| US$7,000.00-50,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
TDPM
Application Area
Chemical, Food, Pharmaceutical
Certification
CE
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Aluminum, Stainless Steel
Mixing Capacity
100-250L
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Diving
Temperature Control
With Heating
Working
Shear Mixer
Dimensions
1300*685*1400
Mixer Type
Double Ribbon Mixer
Layout Type
Horizontal
Operating Type
Cycle Operating
Name
Ribbon Blender
Transport Package
Packed in Export Wooden Case
Specification
ISO, GMP
Trademark
SUPM
Origin
China
Production Capacity
500 Sets/Year
Packaging & Delivery
Package Size
1.30cm * 0.68cm * 1.40cm
Package Gross Weight
300.000kg
Product Description

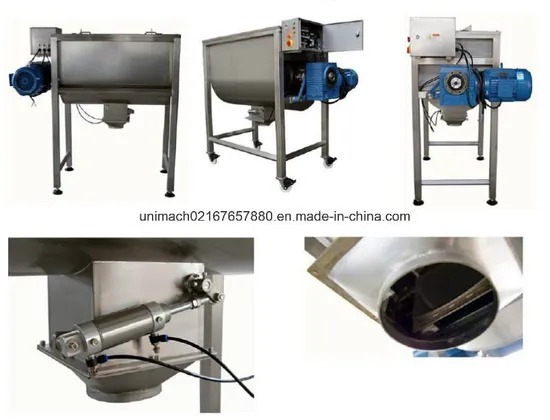

High Speed Ribbon Blender for Dry Powder machineThe horizontal ribbon Mixer is a new type, high efficient mixing equipment, it is widely used for food and chemical industry. It is used for mixing kinds of powder together, this model can mix powder evenly at a high efficient.Characteristics:
1. Horizontal tube body, dual screw between inner & outer the special structure, running stably, high quality, low noise, long work life, easy installation, multiple functions.
2. With guard net and lip
3. Made of stainless steel.
4. For different mixing requirements, use different screw structure, rapidly & thoroughly mixing.
5. With a split window in the body for cleaning
Optional:
The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer's needs.
This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat
| Model | TDPM200 | TDPM300 | TDPM500 | TDPM1000 | TDPM1500 |
| Effective Volume | 200L | 300L | 500L | 1000L | 1500L |
| Volume | 280L | 420L | 710L | 1420L | 1800L |
| Time | 0-30mins | 0-30mins | 0-30mins | 0-30mins | 0-30mins |
| Overall Size(mm) | 1300x685x1400 | 1400x780x1530 | 1640x940x1800 | 1960x1130x2050 | 2480x1340x1850 |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15kw |
| Power Supply | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 Phase 208-415v 50-60HZ |
