Full Automatic Water Tank Type Metal Drawing Machine/Steel Wire Drawing Machine/Wire Drawing Dies/Wire Machine/Wire Making Machine/Wire Mesh Machine

Product Description

Product DescriptionWater Tank Type Metal Drawing Machine

1. Company introduction:
Wuxi Jiexiang Machinery Co., Ltd. was established on February 26, 2010. It is located on the shore of the beautiful Taihu Lake, at the core of Suzhou, Wuxi, and Changzhou, 10 kilometers away from Wuxi Airport, and close to the Beijing-Shanghai Expressway, making transportation very convenient. The company specializes in the production of DL500-1600 inverted drawing machines, LZ-12/560 straight-in drawing machines, LW1-10-560 pulley drawing machines, LT200-560 water tank drawing machines, precision drawing machines specially used in the fastener industry, as well as wire drawing auxiliary machines, pointing machines, elephant trunk type unwinding machines, spooling machines, feeding machines, butt welding machines, etc. Our products have been sold to the United States, Japan, Europe, Vietnam, Philippines, Indonesia, India, Argentina, Egypt, and other countries. In the domestic and foreign metal products industry and fastener industry, we enjoy a good reputation.
2.Water Tank Type Metal Drawing Machine :
Product Description

Company produced the heavy tank drawing machine is drawng,the ideal high-carbon wire Maximum Line φ6.5mm,suitable for steelwire rope,high-strength spring steel wire,needle cloth wire, bead wire, strand wire, aluminum wire core, spoke wire, umbrella skeleton of steel wire drawing.Overallhoisting machine, compact structure,transmission using two strong narrow V-belt drive and gearbox combination of dedicated full-drive gearbox two ways to purchase by the customer. Control sections:general control, frequency control, soft-start control.Significant energy savings,low investment cost,small footprint, and low labor intensty, very popular with users.

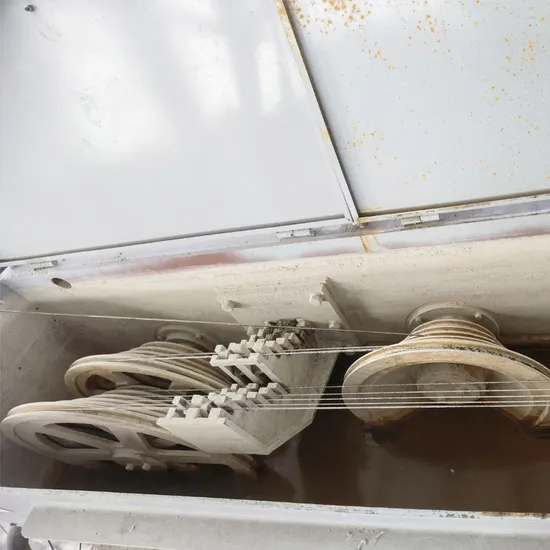

3 .Water Tank Type Metal Drawing Picture:
Installation Instructions

Project	Unit	LT8/560-650	LT11/560-650	LT13/560-650	LT15/560-650	LT17/560-650	LT11/450	LT13/450	LT15/450
Drum diameter	mm	560/650	560-650	560-650	500/560	560/650	450	450	450
Drawing Pass	time	8	11	13	15	17	11	13	15
Maximum Inlet diameter	mm	Φ8-6.5	Φ8-6.5	Φ8-6.5	Φ6.5	Φ6.5	Φ4.5	Φ4.5	Φ4.5
Minimum outlet diameter	mm	Φ4-3.0	Φ3.0-2.2	Φ2.5-2.0	Φ1.6	Φ1.4	Φ1.8	Φ1.4	Φ1.2
Drawing speed	m/min	200	250	250	280	280	260	280	300
Incoming line strength	Mpa	≤1150	≤1150	≤1150	≤1150	≤1150	≤1150	≤1150	≤1150
Total compression ratio	%	75-78.70	85.94-88.54	90.23-90.53	93.94	95.36	84	90.32	92.89
Average compressibility	%	15.91-17.58	16.33-17.88	16.38-16.58	17.05	16.52	15.35	16.44	16.16
Motor Power	KW	160-132	160-132	160-132	132	132-90	90	75	75
External dimensions	mm	5800×3500×1840						5780×3300×1640
Weight	t	11	11	11	11	11	9.5	9.5	9.5

Project	Unit	LTA11/350	LTA13/350	LTA15/350	LT15/350	LT17/250	LT15/200
Drum diameter	mm	350	350	350	350	250	200
Drawing Pass	time	11	13	15	15	17	15
Maximum Inlet diameter	mm	Φ3.5	Φ3.5	Φ3.5	Φ2.2-2.8	Φ1.2-1.7	Φ1.0-1.2
Minimum outlet diameter	mm	Φ1.5	Φ1.3	Φ1.1	Φ0.6-0.8	Φ0.4-0.6	Φ0.28-0.36
Drawing speed	m/min	330	330	330	420	420	315
Incoming line strength	Mpa	≤1100	≤1100	≤1100	≤1100	≤1100	≤1100
Total compression ratio	%	81.63	82.2	90.12	92	88	82
Average compressibility	%	14.28	14.13	14.3	15.5	12	11
Motor Power	KW	55	55	55	37-45	18.5+22-45	7.5-11
External dimensions	mm	5480×3300×1640			2600×13200×1350		1700×1240×1280
Weight	t	4	4	4	3	2.8	1.5
