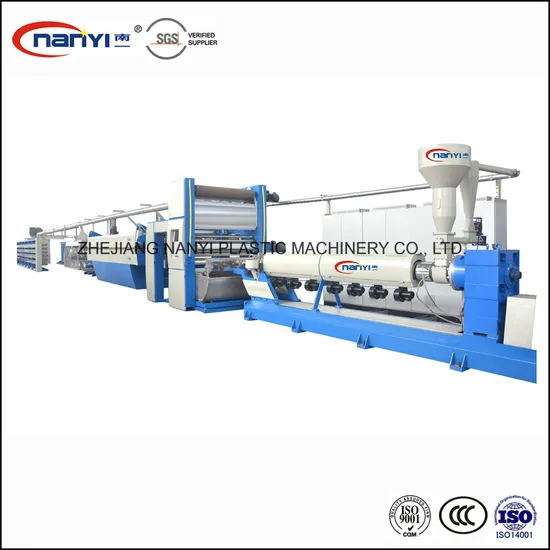

High Speed Plastic PP Polypropylene Flat Yarn Tape Extrusion Stretching Production Line

Product Description

High speed Plastic PP polypropylene flat yarn tape extrusion stretching production line:
this machine is high-speed tape flat yarn extruding drawing line ,adopts advanced foreign technology and combined with reference to domestic technology independent development of specialized production equipment.The equipment is used by micro-processor control frequency conversion and advanced electrical digital analog control technology. Science principal technical index of line reach international advanced level.The line has the performance of high speed,top output and good forming quality of the fiber drum. We apply automatic filter changing structure and fibrillating structure (for flexographic packing bag and fibrillating sewing string) according to customer's requirement.
Main Technical parameters:

Type	SJMS-Z75-33-850*8	SJMS-Z90-33-1000*8	SJMS-Z110X33-1200*8	SJMS-Z120X33-1500*8	SJMS-Z160X33-2000*8
Max extrusion output(kg/h)	200	280	380	500	630
Diameter of Screw(mm)	75	90	110	120	160
L/D ratio of screw	33:1	33:1	33:1	33:1	33:1
Rotational speed of screw(r/min)	20-120	20-120	20-120	20-120	20-100
Width of die(mm)	850	1000	1200	1500	2000
Man linear speed(m/min)	280	280	400	400	400
Flat yarn denier scope	60-200tex	60-200tex	60-200tex	60-200tex	60-200tex
Drawing rate	4-10	4-10	4-10	4-10	4-10
Number of winder(spindles)	136	176	208	256	344
Dimensions of bobbin(D*L)mm	38*230	38*230	38*230	38*230	38*230
System installed power(kw)	120	160	170	210	250
Normal consumption power	120	160	170	210	250
Installing dimensions(L*W*H)mm	29000×3600×3200	32000×3600×3200	34000×3800×3200	37000×3800×3200	45000×3800×3200
Weight(kg)	21000	26000	30000	32000	40000

Technical Paramters are subject to change without prior notice!
