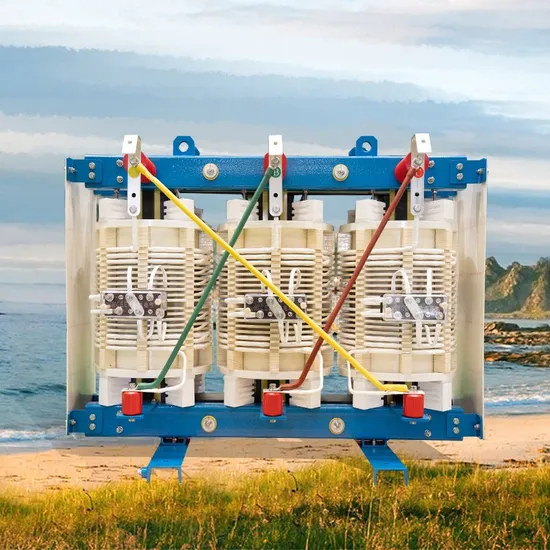

Ceeg Green Energy Storage Series 200 kVA to 10/0.4kv Amorphous Alloy Dry-Type Mv&Hv Power Transformers

Product Description

Product Description
\ FEATURES \

1. High quality and high permeability silicon steel with a multi-stage stepping process leads to low no-load loss.

2. The surface adopting nano paint self-leveling process leads to low noise.

3. Strong waterproof and short-circuit resistance, strong overload capacity, good electrical performance, safety, and reliability.

4. Through the simulation analysis of the electric field, temperature field, and magnetic field, CEEG is the first company in China to pass KEMA's E2, C2, and F1 tests.

5. The product can adopt a dual-mode structure scheme to meet the needs of different customer groups.

6. Special intelligent transformer solutions and big data cloud diagnosis technology are adopted to be online from time to time.

Product Parameters

10kV class SGZ(B)10 product data
Rated High Voltage:10kV ,5kV Connection Symbol:Dyn11/Yyn0
Nominal Low-voltage:0.4kV Tapping Range:±2×2.5%
Model No.	UK %	Air Loss PO(W)	Load Loss ( 120ºC) PK(W)	Io ( %)	LPA (AN ) dB	SIZE L*B*H(mm)	Installation size m*n(mm)	Body Weight	Packing Size	Weight with outer packaging(kg)
SGZB-250/10	4	720	2400	0.8	46	1260x 860x 1115	660 X 660	1400	1700x 1240 x 1610(without load switch)	220
SGZB-315/10	4	880	3730	0.7	46	1260x 860x 1150	660 x 660	1450	1700x 1240 x 1610(without load switch)	220
SGZB- 400/10	4	980	4280	0.7	46	1360x 860x 1318	660 x 660	1965	1800x 1240x 1660 (without load switch)	240
SGZB-500/10	4	1180	5230	0.6	48	1355x 860x 1365	660 x 660	2145	1800x 1240x 1760(without load switch)	260
SGZB-630/10	4	1340	6290	0.5	49	1355x 860x 1405	820 X 660	2320	1900x 1340 x 1865 (without load switch)	280
SGZB-630/10	6	1300	6400	0.5	50	1430x 860x 1405	820x 660	2205	1900x 1340 x 1865 (without load switch)	280
SGZB-800/10	6	1520	7480	0.4	51	1475x 1020x 1467	820 x 820	2635	2000x 1380x 1865(without load switch)	320
SGZB-1000/10	6	1770	8760	0.4	51	1495x 1020x 1537	820 x 820	2720	2000x 1380x 1965(without load switch)	340
SGZB-1250/10	6	2090	10300	0.3	52	1550x 1020x 1612	820x 820	3225	2100x 1380x 1965(without load switch)	350
SGZB-1600/10	6	2450	12500	0.3	53	1655x 1150x 1772	1070x 1070	4115	2200x 1410x 2270(without load switch)	400
SGZB-2000/10	6	3050	15500	25	53	1655x 1270x 1932	1070x 1070	4365	2200x 1450x 2270(without load switch)	440
SGZB-2500/10	6	3600	18400	0.25	54	1685x 1270x 2070	1070x 1070	5450	2300x 1450x 2370(without load switch)	480

Certifications \ CERTIFICATED & QUALIFIED \
SCB series cast resin dry-type transformers have reached the first-level energy efficiency standard of GB20052-2020, and won the 3C, PCCC energy-saving certification, ISO-9001, ISO-45001, and ISO-14001 certificates.
CEEG's cast resin dry-type power transformers have been widely adopted in key projects by customers from all over the world. For example, they have been chosen to serve in the Qingdao International Sailing Center, Beijing Urban sub-Center, Beijing Stadium the Skating Hall, Nanjing Metro, Shanghai EXPO Exhibition Center, etc.
Why choose us \ DESIGN & MANUFACTURE PROCESS \
Based on more than 30 years of design, manufacturing, and experimental experience in the transformer industry, CEEG has developed a set of advanced three-dimensional + parametric design software, which can realize automatic design, cost optimization, and simulation.
Fully considering the requirements of the national and industrial standards, ensuring the advantageous design of products.
The high-voltage winding conductor is wound with a high-quality conductor and reinforced with long and short-cut glass fiber felt. Poured by the advanced Heidrich vacuum pouring system under vacuum. Effectively restrain the occurrence of partial discharge, and the partial discharge is ≤ 5pc.
The low-voltage winding adopts a high-quality foil conductor and is wound on an automatic foil winding machine. The foil winding machine adopts the patented technology of foil wire hydraulic energy-saving tension crimping device, high-precision detection of ±0.5mm, and advanced argon arc welding technology, which plays a key role in ensuring the quality of coil winding.
The iron core adopts a high-quality high magnetic conductivity-oriented silicon steel sheet, a 45° full oblique step lapping process, and the surface adopts special moisture-proof and rust-proof coating, which effectively reduces the no-load current and noise level.
Packaging & Shipping \ USE & PACKING \
SERVICE CONDITIONS - The installation site shall not be flooded by water, the altitude shall not exceed 1000m, and the ambient temperature shall not be higher than 40ºC. The relative humidity is 100%, and the environment is 40ºC to -25ºC (-25ºC requires an on-load tap changer and temperature controller).
PACKAGING & TRANSPORTATION - The products can be partially disassembled and transported (such as on-load tap changer, temperature controller, air cooling device, enclosure, etc. can be packaged separately) or packed as one piece in packaging boxes for transportation.
VISUAL INSPECTION BEFORE INSTALLATION - After opening the package, remove the protective device and check the external conditions, especially paying attention to the mechanical integrity of the coil and iron core, and the bolt fastening at the connection.
INSPECTION BEFORE OPERATION - Measure the DC resistance of high voltage and low voltage windings. Then check the grounding of the iron core to see whether the grounding is reliable and whether foreign matters are overlapping. Last to test the insulation resistance.
ENERGIZING - Before putting into operation, the transformer shall be put into trial operation under no-load, and the protection system shall be checked and adjusted after 3 times of impulse closing.
Company Profile \ ABOUT CEEG \
3 INDUSTRIAL ZONES
4 FACTORIES
15 OVERSEAS BRANCHES
80+ GLOBAL MARKETS
THIS IS OUR DEVELOPMENT - Headquartered in Nanjing, CEEG has always been adhering to the core values of "foresight, innovation, and responsibility" since its establishment in 1990, focusing on production and manufacturing for more than 30 years. In years of development, CEEG has Integrated independent research and development, intelligent manufacturing, and smart marketing services.
OUR PRODUCT - Our technical team has continued to explore and innovate boldly, and has successfully developed nearly a hundred products including evaporative transformers, load centers, 35kV amorphous dry transformers, nuclear power transformers, slow harmonic transformers, high-temperature transformers.
OUR PARTNERS - Our products have been safely operating in major coal groups such as Shenhua Group, Anhui Tongling Mining Group, Pingdingshan Coal Industry Group, Jincheng Coal Industry Group, and Kaolain Group. Many well-known companies such as China Mobile, China Telecom, Inner Mongolia First Machinery, Inner Mongolia Pingzhuang Energy, and Jialing Motor also have established good partnerships with us. We also established long-term strategic cooperative relations with excellent enterprises all over the world, and our business partners include many great companies such as DuPont, Siemens, Hitachi Metals, Our power transformers have been sold to over 80 countries and regions and got high recognition from customers overseas.
