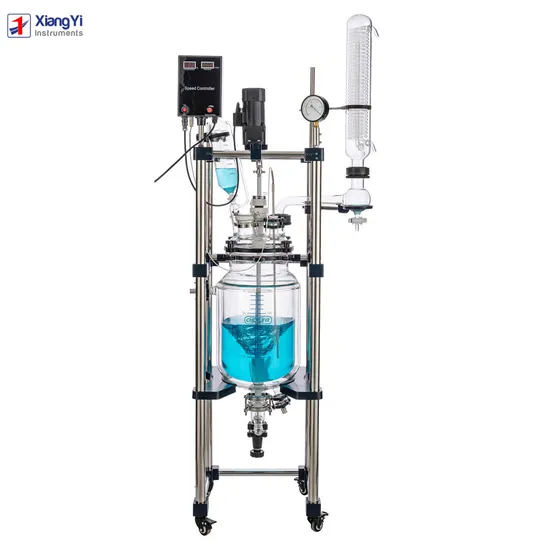

5L~100L Jacketed Glass Reactor, Chemical Reactor, Bio Reactor

Product Description

CHARACTERISTICS OF USES
Reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials. It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.

Features
Temperature adopts digital setting and display, easy to operate, high precision of temperature control. High borosilicate glass has good physical and chemical properties. Can be used in wideemperature range from high temperature (300ºC)to low temperature(-80ºC). Can work in constant pressure and vacuum, vacuum degree is below 0.095MPa in quiet situation. Digital display of mixing speed, , frequency conversion, and constant speed mixing system, work steadily. The sealing me thod and materials between mixer shaft ,PTFE mixing propeller (paddle),and ketttle cover are Know-how of our company. Corrosion resistant discharge valve is without dead space design. The cooling or heating solution in the interlayer can be completely removed after reaction. The whole structure is novelty, practical and beautiful.
Specifications

Model		VGR-05D VGR-05T	VGR-10D VGR-10T	VGR-20D VGR-20T	VGR-30D VGR-30T	VGR-50D VGR-50T	VGR-80D VGR-80T	VGR-100D VGR-100T
Effective volume (L)		5	10	20	30	50	80	100
Jacketed volume (L)		1.5	3	6	10	16	24	30
Jacket heat transfer area (m²)		0.13	0.22	0.32	0.46	0.65	0.9	1.09
Condenser heat transfer area (m²)		0.12	0.2	0.3	0.3	0.3	0.5	0.5
Glassware Material		Pyrex 3.3	Pyrex 3.3	Pyrex 3.3	Pyrex 3.3	Pyrex 3.3	Pyrex 3.3	Pyrex 3.3
Holder Material		SUS 304	SUS 304	SUS 304	SUS 304	SUS 304	SUS 304	SUS 304
Temp. Tolerance (°C)		-80 ~ 200	-80 ~ 200	-80 ~ 200	-80 ~ 200	-80 ~ 200	-80 ~ 200	-80 ~ 200
Operation Pressure(Mpa)		Vacuum or atmospheric pressure
Motor	Power(W)	90	90	90	90	140	250	250
	Adjustment	Frequency Control
	RPM	50 ~ 500	50 ~ 500	50 ~ 500	50 ~ 500	50 ~ 500	50 ~ 500	50 ~ 500
Stirring port (Flange)		50#	50#	50#	50#	50#	60#	60#
Sensor port		24#	24#	24#	24#	24#	24#	24#
Condenser (Milling mouth)		35#	50#	50#	50#	50#	50#	50#
Liquid feeding		24#	34#	34#	34#	34#	34# * 2	34# * 2
Constant pressure funnel		29#	40#	40#	40#	40#	40#	40#
Solid feeding (Flange)		/	80#	80#	80#	80#	95#	95#
Outlet/Inlet interface		DN15	DN15	DN15	DN15	DN15	DN15	DN15
Seal Material		Teflon	Teflon	Teflon	Teflon	Teflon	Teflon	Teflon
Power Supply		220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
Discharge valve	Description	No effusion side discharge valve
	Ground Clearance	400mm	400mm	370mm	360mm	320mm	400mm	350mm
Temp. sensor material		Stainless steel coated with fluorine , double corrosion
Stirrer		Clover rotary vane impeller, stainless steel PTFE Outsourcing
Dimensions(mm) (L*W*H)		460×380×1680	460×380×1680	520×520×2030	520×520×2150	570×570×2250	670L×670W×2600	670×670× 2600
Remark		"D" means jacket glass reactor, "T" means tripe-layer glass reactor
