Glazing Robot 400kg/600/800kg in Vacuum Lifter for Window Installation
| US$13,000.00 | 1 Piece (MOQ) |
Basic Info.
Lifting Range
3500mm
Manipulation
Walkie Type
Glass Size
3660*2440mm
Sucker Diameter
300mm
Transport Package
Plywood Box Package
Specification
2.6*1.05*1.8m
Trademark
N/A
Origin
China
HS Code
8428909090
Production Capacity
1000pieces/Year
Product Description
Glass Handling Robot/ Glass Installation manipulatorDescription:
1. Double system control, one vacuum system for working, and one for alternate;
2. Adopt American THOMAS vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER power unit, and intelligent maintenance-free battery, during the use, without air source or power supply, it can achieve electric walking, lifting, lowering, taking, and releasing air by electrical. Manually rotated 360 degrees in the vertical type, and manually rotated 90 degrees in the horizontal type.
3. With Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.
4. With a vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety pressure value, If there is an unexpected power failure, the pressure holding function can extend the emergency handling time, it is safer to use.
5. Adjustable design can be changed the position of the suction cups and assembled in various ways according to needs, each suction cup equipped with a separate control valve can handle a glass of different shapes and sizes.

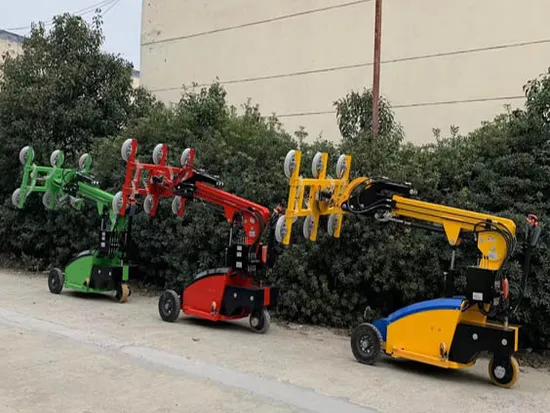

Detailed Pics:
Specifiction Table:
| Electric Robot | Unit | Detailed info | ||||
| Rated load capacity | kg | 300 | 350 | 400 | 500 | 600 |
| Manual rotating | deg | 360 | 360 | 360 | 360 | 360 |
| lifting height | mm | 3500 | 3500 | 3500 | 3500 | 3500 |
| Manipulation | / | Walkie Type | Walkie Type | Walkie Type | Walkie Type | Walkie Type |
| Battery | V/A | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 |
| Charger | V/A | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 |
| Drive motor | V/W | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 |
| Lift motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 |
| Overall Width | mm | 810 | 810 | 810 | 810 | 810 |
| Overall Length | mm | 2660 | 2660 | 2660 | 2800 | 2800 |
| Driving wheel dimension | mm | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 |
| Suckers diameter | mm | 300 | 300 | 300 | 300 | 300 |
| The glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 |
Dimension Drawing:
Other Related Product:
Electrical Vacuum Lifter
Pneumatic Vacuum Lifter
Welcome to inquiry!
