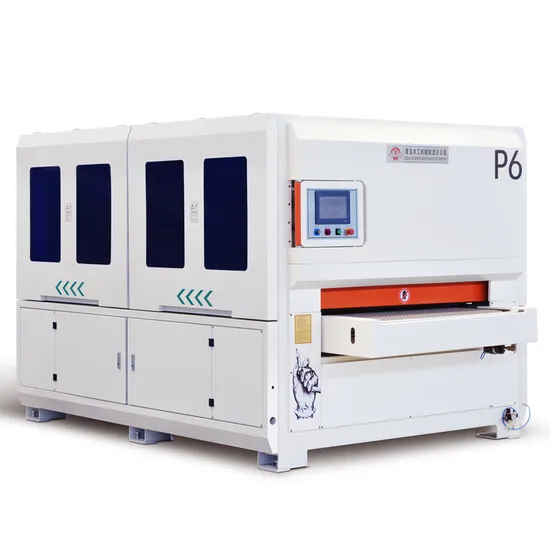

Woodworking Machinery CNC Heavy Duty Solid Wood Panel MDF Oscillating Curve Sander Brush Sanding Machine
| US$15,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QSG1000P6
Automatic Grade
Automatic
Variable Speed
Variable Speed
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Iron Grey
After-sales Service
1 Year
Model
Qsg1000p6 Brush Sanding Machine
Working Width
1000mm Brush Sanding Machine
Working Thickness
2-100mm Brush Sanding Machine
Feed Speed
5-25m/Min Brush Sanding Machine
Quantity of Sanding Roller
Brush Sanding Machine
Quantity of Sanding Disc
8 (in Two Rows) Brush Sanding Machine
Total Motor Power
11.21kw Brush Sanding Machine
Overall Dimensions
4000*2000*2200mm Brush Sanding Machine
Transport Package
Standard Export Packing
Specification
ISO9001
Trademark
HOLZH
Origin
Qingdao
HS Code
84659300
Production Capacity
50sets/Month
Product Description
| Model | QSG630P6 | QSG1000P6 | QSG1300P6 |
| Working Width | 20-630mm | 20-1000mm | 20-1300mm |
| Working Thickness | 5-120mm | 5-120mm | 5-120mm |
| Min working length | 400mm | 400mm | 400mm |
| Brush disc speed | 0-400r/min | 0-400r/min | 0-400r/min |
| Brush disc amount | 7 | 7 | 9 |
| Cross brush speed | 0-400r/min | 0-400r/min | 0-400r/min |
| Cross brush amount | 6 | 6 | 8 |
| Brush roller speed | 0-400r/min | 0-400r/min | 0-400r/min |
| Brush roller amount | 2 | 2 | 2 |
| Oscillating speed | 30times/min | 30times/min | 30times/min |
| Feeding speed | 0-18m/min | 0-18m/min | 0-18m/min |
| Working table height | 900mm | 900mm | 900mm |
| Brush disc diameter | φ180mm*20 | φ180mm*20 | φ180mm*20 |
| Cross brush diameter | φ300mm*35 | φ300mm*35 | φ350mm*35 |
| Brush roller diameter | φ300mm*50 | φ300mm*50 | φ300mm*50 |
| Brush disc power | 1.5kw | 1.5kw | 0.75kw*2 |
| Cross brush board | 1.5kw | 1.5kw | 1.5kw |
| Brush roller power | 1.5kw*2 | 1.5kw*2 | 1.5kw*2 |
| Feeding power | 2.2kw | 2.2kw | 2.2kw |
| Top body Lifting power | 0.75kw | 0.75kw | 0.75kw |
| Each unit Lifting power | 0.37kw*4 | 0.37kw*4 | 0.37kw*4 |
| Oscillating power | 0.37kw*4 | 0.37kw*4 | 0.37kw*4 |
| Working air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Volume of dust collector | 8200m3/h | 10000m3/h | 12000m3/h |
| Dust outlet diameter | φ120mm*6 | φ120mm*6 | φ150mm*6 |
| Dimension | 4000*1700*2200mm | 4000*2000*2200mm | 4000*2300*2200mm |
| Weight | 2T | 3T | 4.5T |
Functions:
1) 2 rows oscillating brush disc,2 rows of oscillating cross roller, 2 brush rollers. All roller are frequency speed control.Each unit can be a separate swing, to eliminate the grinding wheel in the grinding process generated traces of the plate surface smoother.
2) Electric lifting system: height of each unit is electrically controlled due to different processing requirement
3) Guide system: each unit can be pushed out and pull in, change of sandpaper strips is more simple
4) Separate dust removal system: each unit had separate dust removal system which greatly improve the production environment
5)Working tale is fixed, the top machine body can float up and down according to work piece thickness, suitable for sanding production line
