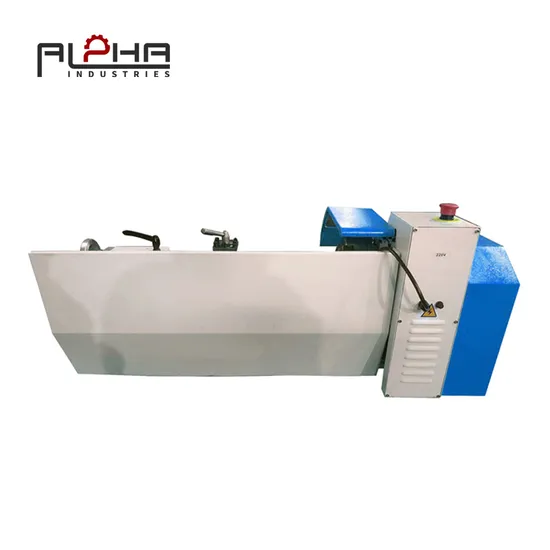

High Precision Variable Speed Mini-Lathe Tu2406 Tu2406 Precision Gear Head Lathe

Product Description

Product Parameters

Basic Info.
Model NO.	TU2406 TU2406 VARIO		Power Source	Electric
Controlling Mode	Artificial		Automatic Grade	Manual
Setting Mode	Hoor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specification	1110x500x500mm		Trademark	Alpha industries
Origin	China		Production Capacity	100 Sets/Year

Model No.	Unit	TU2406	TU2406 Vario
swing over bed	mm	Ø250(9.92")	Ø250(9.92")
swing over cross slide	mm	Ø150(5.91")	Ø150(5.91")
admits between	mm	550(21.65")	550(21.65")
center height	mm	125(4.92")	125(4.92")
width of bed	mm	134(5.28")	134(5.28")
spindle bore	mm	Ø26(1.02")	Ø26(1.02")
spindle taper		MT4	MT4
3-jaw chuck	mm	Ø125(4.92")	Ø125(4.92")
range of spindle speed	rpm	125-2000	30-4000
compound rest travel	mm	75(2.95")	75(2.95")
cross slide travel	mm	85(3.35")	85(3.35")
max. section of tool	mm	14×14(0.55"×0.55")	14×14(0.55"×0.55")
threads metric pitches	mm	0.2-3.5(0.01"-0.14")	0.2-3.5(0.01"-0.14")
threads imperial pitches		8-56TPI	8-56TPI
quill diameter	mm	Ø30(1.18")	Ø30(1.18")
quill travel	mm	70(2.76")	70(2.76")
quill taper		MT2	MT2
main motor power	W	550	850
overall dimension(L×W×H)	mm	1110×500×500	1110×500×500
packing size(L×W×H)	mm	1200×560×570	1200×560×570
N.W./G.W.	kg	140/159	140/159
Standard Accessories
3-jaw chuck	Dead center MT1	Change gears kit	Hexagon wrench
Spanner	Splash guard	Oil gun
Optional Accessories
Steady rest	Follow rest	Turning tools 8×8mm	Live center mt1
er16 collet	er16 collet chuck	Face plate 100mm	4-jaw chuck
Back plate	Chip Tray+stand

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
