US$26,000.00-67,200.00
|
1 Set
(MOQ)
|
Basic Info.
Material
Polyester,Cotton,Nylon,Linen ,Jute, etc
Certification
CE, ISO9001: 2000
After-sales Service
Remote Service/Online Service
Liquor Ratio Starts at
1:6
Carrier
Package Yarn Carrier, Loose Fiber Carrier
Transport Package
Export Standard Packing
Production Capacity
800 Sets Per Year
Product Description
Sample Yarn Dyeing Machine
Product Description
The route to efficient yarn dyeing starts in the laboratory and with small scale production.
The SamY Eco-Dye meets both these requirements while maintaining maximum flexibility with minimum consumption.
Special features
- Same function and performance as the big dyeing machine for mass production.
- High efficiency, high performance centrifugal pump.
- The dyeing technique is suitable for same model dyeing machine.
- Flexible loading, it can change the capacity from 1-3,4-6 package yarns without changing the liquor ratio.
- It can be controlled both by auto and semi-auto, according to customer's needs.
Technical details:
- Max. working pressure: 0.4Mpa.
- Max. working temperature: 140ºC.
- Heating rate: 20~130ºC about 30 minutes (Saturated steam pressure 0.7Mpa).
- Cooling rate: 130~80ºC about 20 minutes(Cooling water pressure 0.3Mpa).
- Standard spindle dia. Is φ48mm, the φ29mm triangle spindle is only for 6 layers package or below.
- Standard package size is Ф165mm × H150mm, 1kg per package.

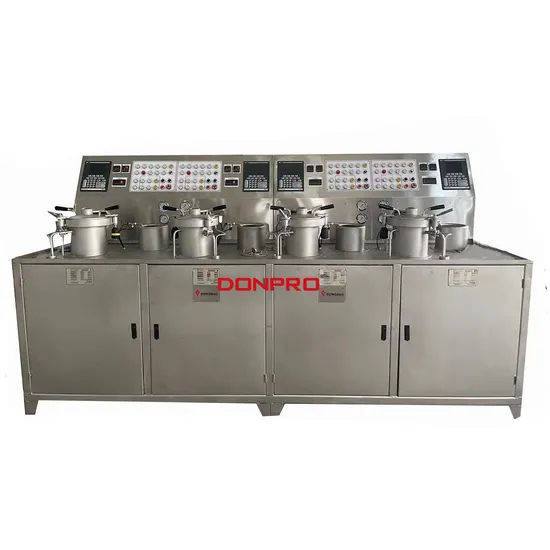

Machine picture
