Best Manufacturers, High Quality Shearing Machine for Sheet Metal Steel Plate Cutting 6mm Metal Shearing Machine Price

Product Description

Product Description 1. Accurate backgauge positioning upto 0.01mm
2. Swing beam shear with Backgauge retraction function
3. E21S NC Controller with sequence repeat function
4. Quick blade clearance adjustment with manual handle shank
5. High quality blades for cutting mild steel, aluminium, stainless steel. Features

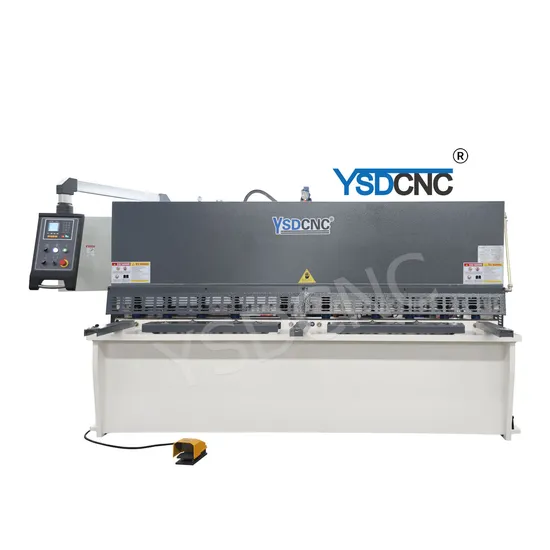

QC12K NC hydraulic swing beam shearing machine with E21S has an all-steel welded structure and comprehensive
treatment (vibration ageing, heat treatment) to remove internal stresses, resulting in excellent rigidity and stability.
Precision sliding guides are used to eliminate guide gaps, resulting in high shearing quality. The E21S system is
easy to operate. QC12K NC Hydraulic Swing Beam Shearing Machine with E21S The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which
can ensure the reliability and precision of the shearing machine. Details Products Pneumatic Back Support Light Curtain Front Feeding Table Feeding the metal sheet automatically controlled by CNC controller with high precision and efficiency. Specification

Type	Max thickness(mm)			Cutting Length (mm)	Throat Depth (mm)	Blade Length (mm)	Blade Length (mm)	Shearing Speed (Cuts/min)	Back Gauge Specification
	450N/mm²	700N/mm²											Travel (mm)	Speed (mm/sec)
4×2500	4	2.5	2500	100	1°30'	2600	10~12	600	180
4×3200	4	2.5	3200	100	1°30'	3300	10~12	600	180
4×4000	4	2.5	4000	100	1°30'	4100	8~10	600	180
4×6000	4	2.5	6000	100	1°30'	6100	5~7	600	180
6×2500	6	4	2500	145	1°30'	2600	10~12	600	180
6×3200	6	4	3200	145	1°30'	3300	9~11	600	180
6×4000	6	4	4000	145	1°30'	4100	8~10	600	180
6×5000	6	4	5000	145	1°30'	5100	6~8	600	180
6×6000	6	4	6000	145	1°30'	6100	5~7	600	180
8×2500	8	5	2500	300	1°30'	2600	10~12	600	180
8×3200	8	5	3200	300	1°30'	3300	8~10	600	180
8×4000	8	5	4000	300	1°30'	4100	8~10	600	180
8×5000	8	5	5000	300	1°30'	5100	8~10	600	180
8×6000	8	5	6000	300	1°30'	6100	8~10	600	180
10×2500	10	6.5	2500	300	1°30'	2600	9~11	600	180
10×3200	10	6.5	3200	300	1°30'	3300	9~11	600	180
10×4000	10	6.5	4000	300	1°30'	4100	8~10	600	180
10×6000	10	6.5	6000	300	2°	6100	5~7	600	180
12×2500	12	8	2500	300	2°	2600	9~11	600	180
12×3200	12	8	3200	300	2°	3300	9~11	600	180
12×4000	12	8	4000	300	2°	4100	8~10	600	180
12×5000	12	8	5000	300	2°	5100	6~8	600	180
12×6000	12	8	6000	300	2°	6100	5~7	600	180
12×8000	12	8	8000	300	2°	8100	5~7	600	180
16×2500	16	10.5	2500	320	3°30'	2600	9~11	600	180
16×3200	16	10.5	3200	320	3°30'	3300	8~10	600	180
16×4000	16	10.5	4000	320	3°30'	4100	8~10	600	180
16×5000	16	10.5	5000	320	3°30'	5100	6~8	800	180
16×6000	16	10.5	6000	320	3°30'	6100	5~7	800	180
20×2500	20	13	2500	320	3°	2600	8~10	800	180
20×3200	20	13	3200	320	3°	3300	8~10	800	180
20×4000	20	13	4000	320	3°	4100	5~7	1000	180
25×2500	25	16.5	2500	320	3°	2600	8~10	1000	180
25×3200	25	16.5	3200	320	3°	3300	5~7	1000	180
25×4000	25	16.5	4000	320	3°	4100	5~7	1000	180
30×2500	30	20	2500	320	3°	2600	5~7	1000	180
30×3200	30	20	3200	320	3°	3300	5~7	1000	180

Type	Front Holder Quantity			Motor Power (kw)	Oli Tank Capacity (L)	Weight (kg)	L*w*h (mm)
		Number (Pcs)	Length (mm)
4×2500	3	800	5.5	220	3600	3040*1610*1620
4×3200	3	800	5.5	290	5000	3840*1610*1620
4×4000	4	800	5.5	290	6500	6460*2100*3200
4×6000	6	800	11	380	11000	6460*2100*3200
6×2500	3	800	7.5	220	5000	3040*1610*1620
6×3200	3	800	7.5	290	6000	3840*1610*1620
6×4000	4	800	7.5	290	8000	4620*1750*1700
6×5000	5	800	7.5	380	10500	5400*1750*1700
6×6000	6	800	11	380	16500	6480*2100*2300
8×2500	3	800	7.5	220	6000	3040*1700*1700
8×3200	3	800	7.5	290	7200	3860*1700*1700
8×4000	4	800	7.5	290	8800	4640*1700*1700
8×5000	5	800	7.5	380	11500	5400*2400*2000
8×6000	6	800	11	380	18000	6480*2100*2350
10×2500	3	800	11	320	7300	3040*1700*1700
10×3200	3	800	11	420	8000	3860*1700*1700
10×4000	4	800	11	420	12000	4650*2100*2000
10×6000	6	800	15	520	24000	6500*2100*2300
12×2500	3	800	18.5	360	9000	3140*2150*2000
12×3200	3	800	18.5	500	10800	3880*2150*2000
12×4000	4	800	18.5	500	13000	4680*2150*2000
12×5000	5	800	18.5	520	16000	5900*2150*2000
12×6000	6	800	18.5	600	29000	6900*2600*2700
12×8000	8	800	18.5	620	46500	9000*3500*3500
16×2500	3	800	18.5	360	11000	3140*2150*2000
16×3200	3	800	18.5	500	13000	3880*2150*2000
16×4000	4	800	18.5	500	16300	4650*2150*2200
16×5000	5	800	18.5	520	20000	5900*2600*2700
16×6000	6	800	22	550	36000	6900*2700*2700
20×2500	3	800	22	540	15500	3440*2300*2500
20×3200	3	800	22	800	18000	4150*2350*2700
20×4000	4	800	22	800	21000	4850*2350*2700
25×2500	3	800	37	800	19000	3200*2700*2900
25×3200	3	800	37	800	23000	4200*2700*2900
25×4000	4	800	37	800	27000	3850*2700*2900
30×2500	3	800	37	800	23500	3300*2900*2900
30×3200	3	800	37	800	27500	4200*2900*2900

Our Service 1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support and service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine
itself-basic manual for the machine in English. We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security.
The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services. You can trade through TT, wire transfer, transfer, paypel, letter of credit, ****** credit order and other transaction methods. We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.) Our Company Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines: air duct
production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy recovery. With over
300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and is equipped with 3 floor-type
boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining centers. In total, we have over 200
large and small-scale equipment. With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to become our agents. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
