Wafer Lift Type Spring Loaded Non Return Check Valve (H71H/W)

Wafer Lift Type Spring Loaded Non Return Check Valve (H71H/W)

US$5.00-60.00 1 Piece (MOQ)

Basic Info.

Model NO.
H71H/W
Material
Cast Steel, Stainless Steel etc
Connection Form
Wafer
Structure
Elevated
Pressure
Ordinary Pressure
Function
Nrvz Silence, Nrvg Silence
Sealing Form
Metal to Metal
Flow Direction
Unidirection
Standard
ANSI, API, DIN, BS, GB etc
Application
Industrial Usage, Water Industrial Usage
Certificate
ISO, Ce
Temperature Applicable
≤200ºC
Transport Package
Bubble Plastic Paper + Plywood Case
Specification
DN15 ~ DN250
Trademark
KARFAR
Origin
China
HS Code
8481300000
Production Capacity
5000PCS/Month

Packaging & Delivery

Package Size
0.50cm * 0.50cm * 0.30cm
Package Gross Weight
0.500kg

Product Description

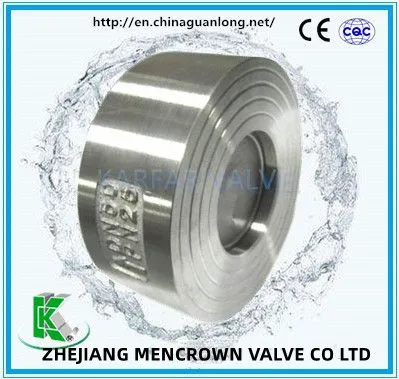

Wafer End Spring loaded Lift Type Check Valve
Model no.H71H/W
Check valves allow flow in one direction and automatically prevent flow in the opposite direction.
Δ This valve is mainly used in the fluid system containing strong oxidative mediums, like water supply system, heat supply system and acid system etc. It is always used as accessory of boilers.
It has exquisite profile and simple structure. Its spring device functions to speed up the closing movement of the disc so as to eliminate water hammer. This valve is very suitable for space-limited locations.
1) Size: 1/2" - 10" (DN15 ~ DN250)
2) Pressure: PN1.0Mpa ~ 4.0Mpa (Class150 ~ 300)
3) Medium applicable: Water, Steam, Oil, Corrosive & oxydizing mediums containing nitric acid and urea etc.
PART
NAME
Body Disc Spring Clasp
Material Cast steel
Stainless steel
Cast steel
Stainless steel
Stainless steel Stainless steel

Wafer End Check Valve Group Show
