Automatic Three-Bridge Stone Line Polishing Machine for Processing Granite Marble Quartz Man-Made Stone, Stone Working Machine for Grinding and Polishing

Product Description

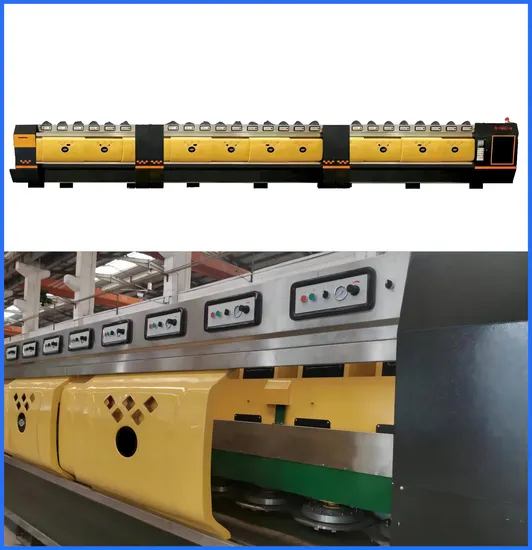

Three-Bridge Stone Line Polishing Machine for Marble & Man-made Stone & Terrazo
Fully Automatic for Marble & Man-made Stone & Terrazo
24 heads by 3 bridge structure, 7PCS frankfurt head
Imported NSK shaft, Servo control system, Xingxing speed reducer
Fast speed of 3.5-4.0 m/min
Stone Line Polishing Machine AKM-D24(10+8+6)/2200, this model adopts three-parts crossbeam structure: 10+8+6 heads for each part, which make it move faster, easier and more flexible. Its intelligent control technology enables the machine to polish slab in fast speed, high efficiency and good stability.
By using servo motors, the swing of crossbeam bridge is more stable, more accurate and much faster. At the same time, the distribution of grinding heads is more flexible and adaptable, because 24 spindles installed in 3 bridges are more flexible and suitable for different slabs.
By using automatic loading lift, it saves labor cost. By using Xingxing speed reducer, the transmission can be more stable and reliable.
Due to EtherCAT communication control unit and control system, the polishing process is highly automatic and intelligent, to ensure maximum accuracy, flexibility, stable performance and high efficiency.
TECHNOLOGY PARAMETER

SPECIFICATIONS	AKM-D24(10+8+6)/2200
Number of Grinding Head	24 PCS
Polishing Thickness	10-50mm
Polishing Width	500-2200mm
Adjustable Speed of Conveyor Belt	0.5~4m/min
Swing Speed of Crossbeam	0~43m/min
Water Consumption	45m³/h
Air Consumption	25m³/h
Power of Main Motor	15KWx24
Total Power	386KW
Machine Dimension(LxWxH)	18650x3980x2600mm
Gross Weight	43000KGs
