Fashion Down Jacket Duck Pillow Down Industrial Filling Machine

Product Description

Product Description · Applicable materials: 0.8D-15D high fiber cotton, wool and cotton (length 10-80mm), feather, cashmere, wool and the mixture involved.
· Applicable products of this machine: down jacket, cotton-padded jacket, outdoor sleeping bag, down hat, down gloves and Medical Thermal products,etc.
· Fully automatic computer intelligent control, covering a small area, 2-4 stations can be selected, 4 stations can work at the same time, without mutual interference.· Three filling modes can be selected: Quantitative mode, free mode and pulse mode. The filling mode can be changed arbitrarily according to different styles and fabrics.
· Has fast filling speed, energy saving and power saving, simple operation and wide application range.
· Equipped with automatic feeding fan, fully automatic one-click Start feeding. This machine has an independent gassupply device, and inside the machine two stabilized gas tanks are installed to make the production performance more stable.
· Automatic material returning function, static electricity elimination device, selfdynamic and constant humidity function and voltage stabilizing device, etc.· Integrated automatic material cleaning system, no material reminder and fault alarm function; Automaticelimination of iron filings function.

Model	KWS690-2
Dimension(mm)	2000x1800x2230mm	Filling port		Two
Voltage	220V/50HZ	Power		2KW
Main Body Size	1700x900x2230x1 set	Filling Port Size		Ф19/25mmxLength450mm,1sets
Dedicated Workbench	1000x1000x650x1set	Filling Range		1-100g
Net Weight	485kg	Storage Capacity		15-25kg
Display Interface	7HD Touch Screen	Auto Feeding System		Optional
Accuracy Class	Down±3g/Fiber ±2g	USB Data Import Function		Yes
Air Pressure	0.4-0.5Mpa(Need air compressor7.5kwnot included)	Filling Speed		0.3-0.5Sec/PCS(fabric piece≤1g)
Gross Weight	580kg	Packing size		1750x1000x2280x1 PCS

Model	KWS690-4
Dimension(mm)	2000x1800x2230mm3.6	Filling port	Four
Voltage	220V/50HZ	Power	2.5KW
Main Body Size	1700x900x2230x1 set	Filling Port Size	Ф19/25mmxLength450mm,1set
Dedicated Workbench	1000x1000x650x2set	Filling Range	1-100g
Net Weight	510kg	Storage Capacity	15-25kg
Display Interface	7"HD Touch Screen	Auto Feeding System	Optional
Accuracy Class	Down±3g/Fiber ±2g	USB Data Import Function	Yes
Air Pressure	0.4-0.5Mpa(Need air compressor≥7.5kw,not included)	Filling Speed	0.3-0.5Sec/PCS(fabric piece≤1g)
Gross Weight	610kg	Packing size	1750x1100x2300x1PCS

Model	KWS690-4R (Automatic drying and UV disinfection)
Dimension(mm)	2000x1800x2230mm	Filling port	Four
Voltage	220V/50HZ	Power	2.5KW
Main Body Size	1700x900x2230x1 set	Filling Port Size	Ф19/25mmxLength450mm1set
Dedicated Workbench	1000x1000x650x2set	Filling Range	1-100g
Net Weight	510kg	Storage Capacity	15-25kg
Display interface	7"HD Touch Screen	Auto Feeding System	Optional
Accuracy Class	Down±3g /Fiber ±2g	USB Data Import Function	Yes
Air Pressure	0.4-0.5Mpa(Need air compressor≥7.5kw,not included)	Filling Speed	0.3-0.5Sec/PCS(fabric piece≤1g)
Gross Weight	610kg	Packing size	1750x1100x2300x1PCS

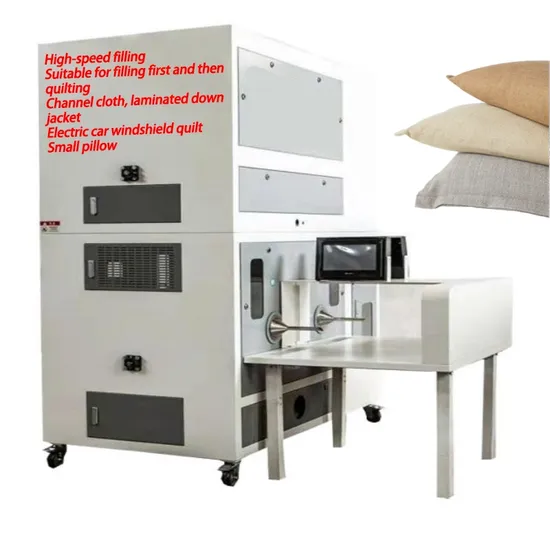

Product real shots
Application


Customer Feedback
Packaging & Shipping
FAQ Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
