Layer Cage System for Chicken Battery Chicken Cage Hens Egg Cage for Sale

Product Description

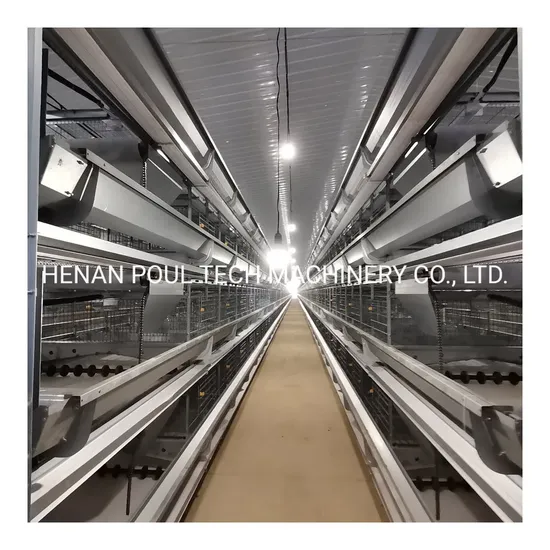

The Automatic H frame Broiler Battery Cage System is composed of Hot dipped Galvanized Cage System.
When you harvest the broiler chickens, the floor mesh will be taken out and the chickens dropped down on the manure belt and deliver to the end of the chicken house. The Transverse Broiler Conveyor System will deliver the broilers outside of the chicken house.
This system including automatic feeding, drinking system, manure collection system TCU in close house. It has been designed for maximum profitability and to reduce the overall production cost.
The system is easy to operate and has long service life for broiler rearing. The auger is from one of the most famous Auger Manufacturer Steel System which is made in South Africa, solid and durable. the plastic feeder will be give average feed to every broiler chicken in the cages.
The stainless steel nipple drinkers which fitted with square pipe(25*25mm,Thickness=2.50mm), and the Cups under the nipples can collect the dropped water from the drinkers.
It is the 3 or 4 tiers of H frame Broiler Battery Cage System are most popular. The Dimension of each cage cell is 800*600*420mm,and 8 birds in each cell, average 600 sq. cm. can be taken by each bird, this is enough for broiler from day 1 to its harvest and we also can produce OEM H Frame Broiler Cages according to clients' special requests.

Item Name	Rearing Period	Length/cell	Width/cell	Height/cell	Cell Nos/Unit	Birds /cell
PT-HB3002	33 days	160	60	40	2	10
PT-HB3003	45 days	160	60	40	2	9
PT-HB3004	56 days	160	60	40	2	8

The Plastic bottom mesh is Dimension is Depth854 * Length708 * Thickness50mm

Compered with the floor production, significantly increased utilization of the house surface area, reduced energy consumption.
Very hygienic growing conditions , healthy, uniform flock, increased growth rate, improved feed conversion, up to one crop more per year is possible.
Quick and easy cleaning, reduce time, improve working efficiency ,Avoid the hen house is not affected by environmental pollution.Broiler Chicken Cage Descriptions
Hot galvanized wire parts provide a high corrosion protection and a long service life. Spring door can be opened simply and easily the bird area is easily accessible for inspection pur-poses and quick and easy moving-in. It also has the advantage of smooth surface, good elasticity, high strength, low broken rate etc..
The push-pull plastic net can be pushed and pulled easily and also can move out of the ready-for-slaughter broilers easily.
When you harvest the broiler chickens, the floor mesh will be taken out and the chickens dropped down on the manure belt and deliver to the end of the chicken house. the Transverse Broiler Conveyor System will deliver the broilers outside of the chicken house.The advantages:
More chickens can be reared →compered with floor feeding, the quantity can be increased by 50% ~ 100%;
Manure is isolated from the chicken body completely →reduce the dust greatly ,the chance of infection diseases through the feces is less , improve the survival rate of chicken.
The exercise of chicken is limited →small energy consumption, save the feed.
Its convenient for observing ,grouping or selecting and eliminating chickens.
There have enough position for chicken to gather the food and water,the degree of uniformity and health situation are both better;
No bedding needed →save the cost and cleaning.
Low broken rate , and more cleaner.
Reduce the chicken's disability greatly.
Reduce the labor requirements.
The system is easy to operate and has long service life for broiler rearing.the auger is from one of the most famous Auger Manufacturer Steel System which is made in South Africa,solid and durable.
The plastic feeder will be give average feed to every broiler chicken in the cages.The stainless steel nipple drinkers which fitted with square pipe(25*25mm,Thickness=2.50mm).
The Cups under the nipples can collect the dropped water from the drinkers.
Automatic Galvanization Broiler Chicken Cage (H Type)
