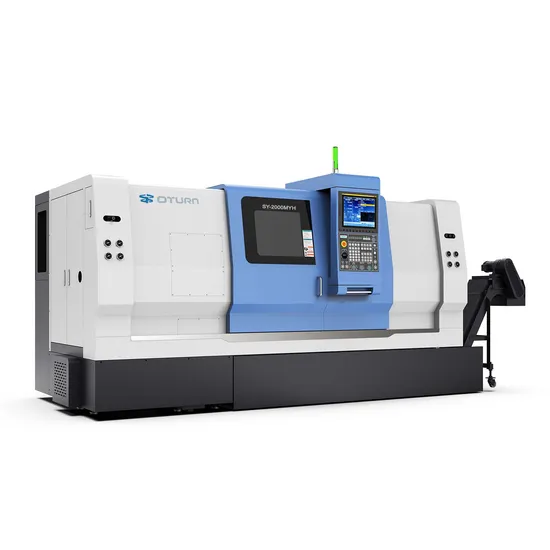

High Precision CNC Turning Center Lathe with CE

Product Description

Product Description
The machine boasts an optimized 30-degree inclined bed structure, ensuring unparalleled precision, exceptional rigidity, and outstanding cutting stability. Constructed from high-strength HT300 cast iron, the one-piece bed undergoes finite element analysis, offering excellent mechanical rigidity and stability. This ensures long-term reliable precision, enhanced processing stability, and extended tool life. Stress relief treatment further improves precision stability. The high-strength hard rail structure and screw pre-tensioning transmission system elevate rigidity performance. Main features of this machine tool: 1. The spindle unit features an independent sleeve type, undergoing stringent dynamic balance tests for high precision, excellent precision retention, minimal thermal deformation, and superior thermal stability. With a maximum speed of 2500rpm and nose deflection accuracy within 0.003MM, the spindle's front end utilizes a large-diameter high-precision double-row roller bearing and combined oblique contact ball bearing structure. This optimal span two-point balanced support design can handle both radial and axial loads, suitable for high-speed precision cutting and low-speed heavy cutting. Ideal for mass production of complex, high-precision, and high-finish products. 2. The high-rigidity servo power turret facilitates rapid, precise tool changes. Coupled with high-speed power shaft power milling, it offers superb turning and milling capabilities. The tool holder features a high-rigidity BMT installation interface, driven by a servo spindle motor. 3. Equipped with hard rail guide rails and heat-treated, precision-ground ball screws, the machine ensures optimal precision and durability. Each axis incorporates a direct transfer axis structure and double anchor pre-relay method, minimizing thermal displacement and significantly enhancing machining accuracy. Excellent precision and durability, each axis adopts a direct transfer axis structure and double anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. 4. The machine boasts a comprehensive hydraulic and lubrication system with high-quality hydraulic pumps, valves, and components, significantly reducing failure rates. The system's design is simple and reliable, featuring centralized quantitative automatic lubrication. 5. The hydraulic tailstock incorporates a high-rigidity structure, eliminating vibration and providing excellent stability. Sleeve expansion and contraction are achieved via a hydraulic cylinder, ensuring convenience, speed, and reliability. 6. Featuring a Taiwan rotary chuck oil cylinder and an automatic chip removal device, the machine significantly reduces operator labor intensity while ensuring safe, efficient production. All functional components are programmable, including special fixtures.
Product Parameters

Name	Unit	SY2000MYH
Max.swing diameter over bed	mm	Φ800
Max.processing diameter	mm	Φ520
Max.swing diameter over cross slide	mm	Ф500
Max.processing length	mm	1940
Spindle nose	/	A2-11
Chuck	"	12
Spindle bore diameter	mm	Ф102
Bar diameter	mm	Ф88
Max. Spindle speed	rpm	2000
Spindle motor power	kw	26KW
Motor torque 248 pulley ratio; 1:2	Nm	496/706
X/Z/Y travel	mm	310/2000/120±60
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z/Y motor power	KW	2.9/2.9/1.8
X/Z/Y axis moving fast	m/min	18/18/8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12T
Power turret motor	Kw	5.0/7.5
Max.speed of power tool holder	rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.2
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	2130
Morse Slideway	type	Morse5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	5450*2210*2100
Machine weight	kg	8000
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
To assist you in selecting the perfect machine, please provide your specific requirements. We can recommend the best model for you, or you may choose a specific model. Additionally, if you send us the product drawings, we will determine the most suitable machine tailored to your needs.
Q2: What are the main products of your company?
Our expertise lies in a diverse range of machinery, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and advanced turning and milling composite processing equipment.
Q3: Where is your factory located? How can I visit?
We operate five factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us and witness our state-of-the-art facilities.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are your payment terms?
Our payment terms are T/T, with a 30% initial payment upon order and the remaining 70% balance due before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. However, for some low-cost machines, the MOQ may be more than 1 set.
We want to know:
1. We highly recommend you provide the size and material of your workpiece for our evaluation. If possible, sending us the workpiece drawings will enable us to recommend the most suitable model for your needs.
2. If you require a CIF price, please kindly inform us of your port of destination.
