Full Automatic Plastic Cups Thermoforming Machine with High Speed (80t-h)

Product Description

Full Automatic Plastic cups Thermoforming Machine with high speed(80t-h)
Applicantion:
Water Cup Making Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memry system
PLC design with easy operation.

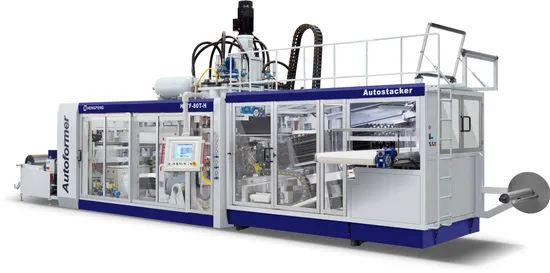

Machine:
Main Specification:

1- Max. Forming Area	762×470mm(30"×18.5")
2- Max. Forming Height	≤130mm
3-Mold Clamping force	500KN
4-Sheet Width	Max 820mm; Min 650mm
5-Sheet Thickness	0.4mm-2.0mm
6-Heater Specification	Ceramic Heater up and down 70/80kw
7-Heater Control	Omron Temperature module and PLC match with control
8-Forming Method	Air pressure forming & driven by Cam
9-Operation Method	Fully automatic with touch screen control
10-Material Feeding	Servo Motor 4.4kw
11-Main motoer power	11kw
12-pushing cup motor power	1.3kw
13-stretching servo motor power	11kw
14-Max. Sheet Rolling Diameter	Φ1500mm
15-Air Pressure	0.7-0.85mpa
16-Water Consumption	50L/min
17- Air Consumption	4000L/min
18- Max.No-Load Speed	40 Cycles/min
19- Power (Three Phase Four Wire)	380V,50Hz,3Phase
20- Max installed power	200kw
21- Machine Weight	14500kg
22- Machine Dimension	14500×3850×4250mm

Mould:
Sample:
Shipping Packaging:
Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
Factory Address:NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
Operation:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
