Metal Plate Leveling Leveller Machine /Plate Leveler /Leveling Machine

Product Description

Product Description

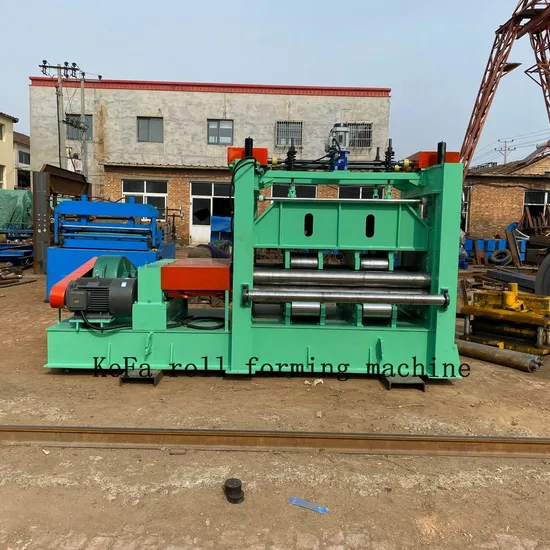

Plate Straightening Machines, Plate Leveler
Stainless steel sheet metal plate leveling leveler straightening machine
Machine Introduction
1.The machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group support rolls.
2.Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3.Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
4.Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5.Distribution box: self-made; itemploys one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
6.Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7.Adjustment methods: manual and electrical adjustment.
8.Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9.Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
10.We can design and produce for special requirements.
Optional Specifications

Model	Thickness (mm)	Width (mm)	Straightening roller diameter (mm)	Working roller distance (mm)	Qty. of working rollers (PCS)	Straightening speed m/min
1.5*1600	0.5-1.5	1600	50	55	19	0-20
3.0*1600	0.5-3	1600	75	80	15	0-20
6.0*2000	1-6	2000	95	100	13	0-15
8.0*2000	2-8	2000	130	140	13	0-15
12*2500	3-12	2500	150	160	11	0-10
16*2500	4-16	2500	180	200	11	0-10

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
