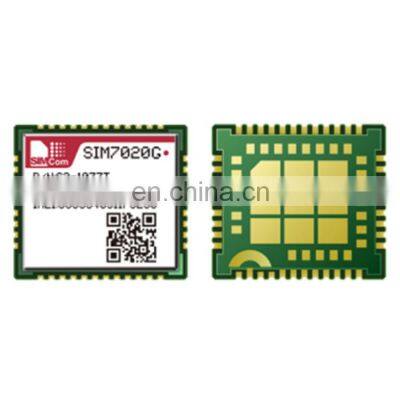

SIM7020G Global-Band NB-IoT LPWA module SMT type

Product Description

Product Description
DescriptionSIMCOM SIM7020G●The SIM7020G is Global-Band NB-IoT module solution in a SMT type. It has strong extension capability with rich interfaces including UART, SPI,I2C, GPIO etc. The module provides much flexibility and ease of integration for customer's application.-●The package (LCC part) of SIM7020G is compatible with SIM800C (2G module with LCC package). This also maximizes the investments of customers, and enables a short time-to-market.-●It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.-Product Advantages● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020G can extend battery life to 10 years;● SIM7020G provides deeper coverage enhancement compared to GSM;● The package and AT commands of SIM7020G mostly are compatible with SIM800C.-General Features● Support Bands:B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/ B66/B70/B71● Control Via AT Commands● Supply voltage range: 2.1V-3.6V● Operation temperature: -40℃ to +85℃● Dimensions: 17.6 X 15.7 X 2.3mm● Weight: TBD-Data● Uplink: 150Kbps Downlink:100Kbps-SMS● Text and PDU mode-Consumption● PSM: 3.5 uA● sleep: 0.4mA● Idle: 5.6mA● eDRX: 30uA （eDRX=655.36s）-Other Features● TCP/UDP● HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING● LWM2M/COAP/MQTT● Aira Cloud● Firmware update via UART● FOTA● EAT*-Interfaces● UART● SIM card (1.8V/3V)● SPI● I2C● GPIO● ADC● Netlight● PSM_EINT● Reset● Powerkey-Certifications● CE/FCC● RoHS / REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
