1325 Stone Engraving Machine Heavy Marble Stone Tombstone Archway Engraving Relief Plotter Manufacturers

Product Description

Product Description

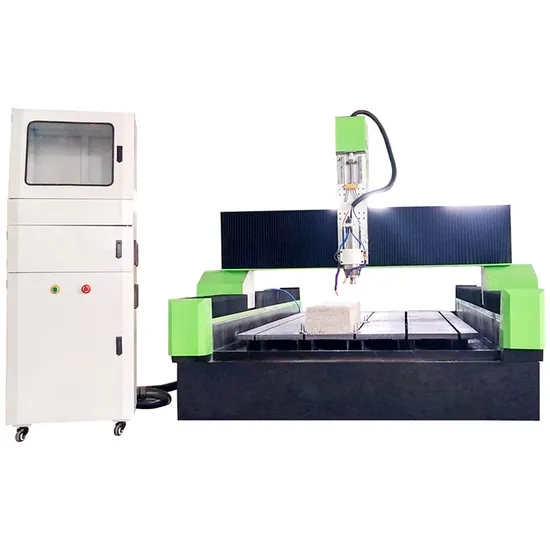

Stone CNC Router
Brief introduction
1.The body is welded with thick wall steel tube, which is treated by high temperature tempering, to ensure that the body has less deformation, good rigidity and strength
2.The Y axis adopts high precision and two way rack and pinion meshing transmission, with high precision and fast speed.
3.Z axis adopts Taiwan TBI balls crew, high precision
4.XYZ are used in the research and control of large drives.
5.Adopt imported square linear guide, high precision, high bearing redundancy, long life
6.The machine tool is equipped with a sink and automatic water supply cooling system
7.All the dust and waterproof design, the full range of protection of the machine parts.
8.3D carving is optional, diameter(0-300mm) and length optional(0-2000mm)( extra cost )
Stone CNC Router technical parameters

Model	GD-1325	GD-1825-2	GD-1325 2D/3D
X,Y,Z-axis working area	1300*1300*200mm	1800*2500*300mm	1300*2500*300mm
Max. Feeding height	›150mm
Cut thickness of material	150mm
Max. Speed	2500mm/min
Working speed	0-2000mm/min
Mechanical precision	0.05mm/300mm
Compatible Software	TYPE3 software, Artcut software, Artcam software
Max. Power consumption	4.5KW
Power source	AC220/50HZ
Driver type	860 prime mover
Memory	DSP control
Spindle	3.0KW(optional), water-cooling
Spindle speed	0-24000rpm
Blade diameter	3.175mm, 4mm, 6mm, 12.7mm
Control system	DSP or NSTUDIO control systerm
Command	G code
The optional accessories	Rotary axis, servo motor, air-cooled spindle, Hiwin square guide rail

Stone CNC Router technical application
Applicable materials
Marble, granite, Chaina black, bluestone, jade, ceramics, crystal, glass, plastics, chemical synthesis in organic glass, PVC board, bamboo, aluminum composite panel, metal, plastic and other meterials for line carve, 2D carving, 3D sharp bottom sulpture, 3D relief, cutting, chamfering of edge, cutting and drilling process.
Application
Suitable for stone, tombstone processing, advertising, decoration, arts and crafts industry etc..
Stone CNC Router details
Advertising CNC Router samples
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM
If you have other needs, please let me know
Packaging & Shipping
Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
