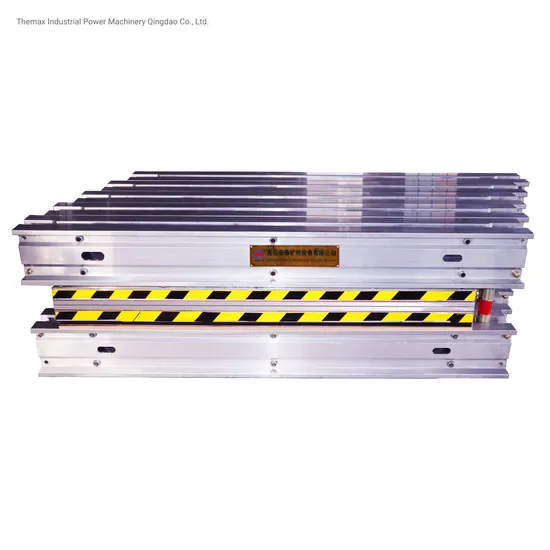

1800mm Water Cooling Conveyor Belt Vulcanizing Splicing Joint Press Machine

Product Description

Water Cooling Conveyor Belt Vulcanizing Splicing Joint Press Machine
This portable equipment has been widely used in metallurgy, mining, cement, power plants, port transportation, building materials, chemical and other sectors.
• Signature ANTAI "Pressure Bag" uniform pressure system suitable to exert a maximum pressure 23 kg/cm² (23Bar/2.3MPa/333 P.S.I)
• Custom "Copper Pipe" cooling system within platens.
• Innovative "Silicone Element" fast heating system.
• Automatic mute pressure pumps for operating pressure above 90 Bar.
• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, SGS and BV approved.
HEATING PLATEN
Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to construct a flexible platen that contours to belt irregularities.
The heating elements is made up with a whole piece of silicone plate without any splicing point, which ensure the full uniform heating as well as the fast rising of temperature. It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush "quick connect" make smooth profile. Recessed power connections are sealed for moisture resistance.

The dimension and shape of the machine can be customized by your requirements. STYLE design available
Model	Belt width(mm)	Total Power(KW)	Dimensions (L*W*H mm)	Net Weight (kg)	Max weight of single Component after separation(kg)
ZLJ-650*830	650	9.5	1370*830*630	430	45
ZLJ-650*1000		10.8	1370*1000*630	500	66
ZLJ-800*830	800	11.2	1520*830*630	535	70
ZLJ-800*1000		13.5	1520*1000*630	575	79
ZLJ-1000*830	1000	14.1	1720*830*630	595	82
ZLJ-1000*1000		15.7	1720*1000*630	620	95
ZLJ-1200*830	1200	16.5	1920*830*710	800	96
ZLJ-1200*1000		17.2	1920*1000*710	870	113
ZLJ-1400*830	1400	18.6	1930*830*760	930	107
ZLJ-1400*1000		20.7	2120*1000*760	1180	132
ZLJ-1600*830	1600	21.5	2320*830*800	1270	120
ZLJ-1600*1000		22.3	2320*1000*800	1460	146
ZLJ-1800*830	1800	23.3	2520*830*850	1380	137
ZLJ-1800*1000		25.6	2520*1000*850	1650	164
ZLJ-2000*830	2000	27.2	2720*830*950	1760	154
ZLJ-2000*1000		30.0	2720*1000*950	1860	182
ZLJ-2200*830	2200	29.2	2920*830*950	1860	165
ZLJ-2200*1000		34.1	2920*1000*950	1970	198

another product
package
our company
ANTAI is the leading manufacturer of conveyor belt vulcanizing equipment. ANTAI has been offering unique Sectional Vulcanizing Systems that provide strong, long-lasting splices, for over 27 years in china.
The Unique and Innovative belt splicing system designed to be portable and offer maximum versatility in splicing all types and sizes of conveyor belting. It's intelligent, modular design and vast array of unique operating features, can handle all types of belt designs in every conveyor application.
The ZLJ series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site splicing of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it's used for the vulcanized jointing of the belts mixed with canvas, nylon, steel cord, etc., and it's also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.
The Sectional vulcanizer offers equipment, which is portable and easy to set-up and remove from the site. It has accurate control and indication uniform temperature due to the unique element design and uniform pressure over the entire splice area. Components in this model are lightweight and easy to assemble.
