SAE 100r7/En855 R7 Standard Hot Sell in Russia Market GOST Hose GOST 5398-76 Suction Discharge Hose Hydraulic Hose SAE100 R1 R2 R3 R5 R6 R7 R8
| US$0.12 | 50 Meters (MOQ) |
Basic Info.
Model NO.
SAE 100R7/EN855 R7 STANDARD
Color
Blue/Red/Yellow
Working Pressure
21
Burst Pressure
76
Transport Package
Pallet/Carton/Plastic Film
Specification
1/8"-1′′
Trademark
HERO POWER/RUNNINGFLEX/SUPER WELL/EVERFLY
Origin
China
HS Code
40093100
Production Capacity
660, 000 Meters Per Month
Product Description

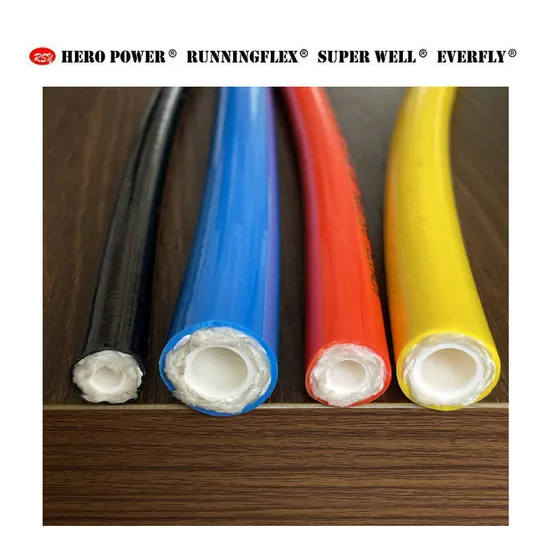

Construction:Tube: Oil-resistant synthetic thermoplastic core(Nylon)Reinforcement: One braid of high tensile synthetic fiberCover: Abrasion-resistant polyurethaneTemperature: -40°C to +100°CApplication: Automobile,construction machinery,lathe,agriculture,Machine,mining,Spurting the oil paint,navigation & spaceflight, cooling and other hydraulic control system.| Size | SAE | Inside Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Length | |
| mm | Dash | Inch | Min | Max | Mpa | Mpa | mm | m |
| 3 | -2 | 1/8" | 3.2 | 8.5 | 17.2 | 68.8 | 13 | 100 |
| 5 | -3 | 3/16" | 4.8 | 10.8 | 21.0 | 84.0 | 33 | 100 |
| 6 | -4 | 1/4" | 6.4 | 13.0 | 19.0 | 76.0 | 38 | 100 |
| 8 | -5 | 5/16" | 8.0 | 15.1 | 17.5 | 70.0 | 46 | 100 |
| 10 | -6 | 3/8" | 9.5 | 17.0 | 15.7 | 62.8 | 51 | 100 |
| 13 | -8 | 1/2" | 12.7 | 20.7 | 14.0 | 56.0 | 76 | 100 |
| 16 | -10 | 5/8" | 16.0 | 22.0 | 11.0 | 44.0 | 110 | 100 |
| 19 | -12 | 3/4" | 19.0 | 26.0 | 8.7 | 34.8 | 127 | 50 |
| 25 | -16 | 1" | 25.0 | 32.0 | 7.0 | 28.0 | 203 | 50 |
