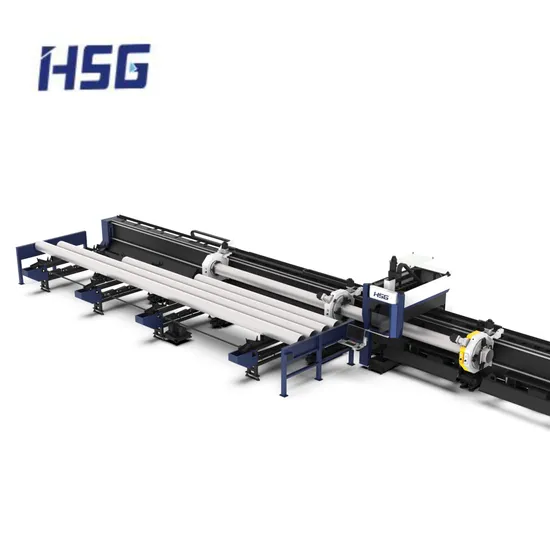

Factory Price Industrial CNC Automatic Feeding Metal Heavy Tube Fiber Laser / Tube / Pipe Cutting Machine Manufacturers

Product Description

Factory Price Industrial Cnc Automatic Feeding Metal Heavy Tube Fiber Laser Tube Pipe Cutting Machine Manufacturers 3000W - 6600W
Carbon Steel Welded Integrated Machine Bed
Japanese TakigiTubeNest Nesting Software
French-brand Speed Reducer and Gear Wheels

Technical Parameters	TX12050	TX12036	TX9036	TX7026
Power	6600W	6600W	4000-6600W	3000-6600W
X/Y-axis Positioning Accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.05mm	±0.05mm	±0.05mm	±0.03mm
No-load Speed	40m/min	60m/min	60m/min	100m/min
Rotating Speed of Chucks	35r/min	60r/min	60r/min	100r/min
Acceleration	0.3G	0.6G	0.6G	1.0G
Tube Size	Φ80-500mm £80*80-350*350mm rectangular diagonal≤500mm	Φ20-360mm £20*20-250*250mm rectangular diagonal≤360mm	Φ20-360mm £20*20-250*250mm rectangular diagonal≤360mm	Φ15-260mm £15*15-180*180mm rectangular diagonal≤260mm
Weight of Single Tube	1500kg	1200kg	800kg	400kg
Tube Length	12000mm	12000mm	9000mm	7000mm
Overall Dimensions (L*W*H), with Loading Device	21000*7000*3500mm	20500*6000*2500mm	17500*6000*2500mm	12500*5500*3100mm

* Heavy-duty tube refers to single tube weighing 500kg+.
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
Optional 3D Five-axis Cutting Head, 45° Bevel
Self-developed by HSG Laser ; Take control of laser focus thanks to its fully automated servo motor
Laser path reshaping technology ; Swingable head outfitted with the function of collision prevention
Modular structure in favor of repair or maintenance
The point of TX12036
1.Chuck Clamping Technology
Chuck C3 and C4 are combined as one and can rotate or move synchronously but control its claws opening and closing independently. Except for clamping, tube supporting is also available for the combined chuck, remedying the common weakness of four chucks.
Both tube clamping and supporting
Correction of tube deviation
2.Multi-point Supporting for Heavy Tubes
Tubes are usually clamped and supported by four chucks concurrently. Any tube deformation can be automatically corrected to keep cutting precision high and cutting products of uniform size.
3.HSG-X9800 CNC System
As the fifth generation, HSG-X9800 is specially developed for our machines equipped with four chucks.
21.5-inch touch screen
Built-in tube graph database, no programming required
Create cutting records and reports automatically
Enter its program by clicking anywhere
Show special-shaped tube graphs and cutting routes in an intuitive way
Japanese Takagi Tube Nest (TTN) Software
It is re-developed based on Solidworks and can carry out parts design, programming and auto nesting for open and closed graphics.
* Generate cutting trace automatically/by hands, intuitive analog simulation
* Built-in tube library, direct imports of assembly for programming, nest according to tube length and priority
* Reserve data interface to dock with other ERP/MES systems
4.Perform Well in Tube Cutting
Cut max. 12000mm entire tube ; weight of single tube 1200kg ;cutting range of round tube Φ20-360mm ; length of entire machine 20000mmAlso cut profiles like channel, angle and I-shaped steel ; Cut 250# H-shaped steel at most
5.Automatic Unloading Equipment
Two follow-up turning plates can convey finished heavy tubes stably from high to low while unloading and process all tubes within specified processing range, regardless of tube size or length.Optional Features:Semi-automatic loading device: reduce labor intensity, save labor force and make cutting efficient; Laser-proof glass: protect workers' retina well .
Labor-saving Configurations
* Multi-tube Automatic Loading Device
Several heavy tubes are usually loaded synchronously.
* Automatic Unloading Equipment
Two follow-up turning plates are available to convey ≤6000mm heavy tube stably from high to low while unloading, so that tube surface is well protected.
Cutting Sample
Packaging & Shipping
Our package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.
Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China
