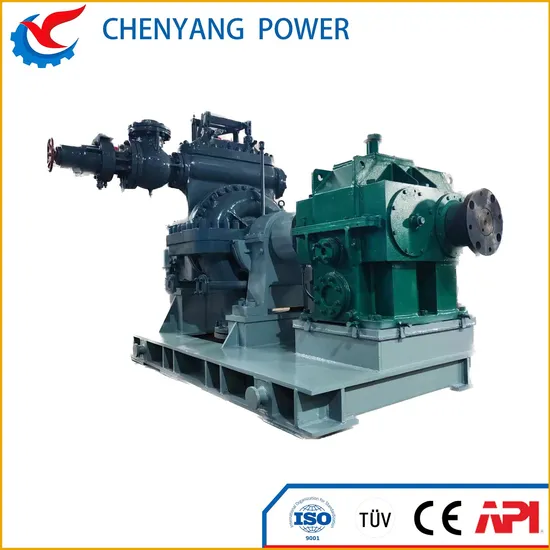

CD60 Series Single Stage Back Pressure Steam Turbine
| US$67,880.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CD60
Power
200-3000kw
Generator Type
Alternator
Output Type
AC Three Phase
Certification
CCC, ISO, CE
Standard
Standard
Type
Pulse Type
Generator
Synchronous
Motor Type
Asynchronous
Frequency
50Hz
Freq
60Hz
Voltage
380/430
Heat Resource
Waste Heat
Boiler Type
Waste Heat Recovery Boiler
Power Consumption
Energy Saving
Transport Package
Sea Worht
Specification
200-3000KW
Trademark
CHENYANG
Origin
China
HS Code
8406811000
Production Capacity
50 Sets/Year
Product Description
ADVANTAGES OF SMALL SCALE PRESSURE DIFFERENCE COGENERATION SET- High flexibility
- Low investment and quick back
- Effectively solving the industrial waste heat, differential pressure utilisation
- Reducing costs and increasing efficiency for enterprises, and meeting customer needs.
CD60 SERIES SINGLE STAGE BACK PRESSURE STEAM TURBINE
CHARACTERISTICS
- One Curtis wheels 624mm.
- DEH adjusting system, with multi valves for adjusting.
- Forced lubricating.
- Main shaft speed 3000~7000r/min, after gear box conversion, output speed 1500r/min to drive generator.
- Can design according to customer's requirements.
TECHNICAL SPECIFICATIONS
| Model | Rated power (kW) | Speed (r/min) | Intake pressure (MPa) | Intake temperature (ºC) | Exhaust pressure (MPa) | Exhaust temperature (ºC) | Steam consumption (t/h) | Weight (tons) |
| B1-2.35/0.294 | 1000 | 6500/1500 | 2.35 | 390 | 0.294 | 222 | 12 | 7.5 |
| B1-2.35/0.49 | 1000 | 6500/1500 | 2.35 | 390 | 0.49 | 237 | 15 | 7.3 |
| B1-3.43/0.294 | 1000 | 6500/1500 | 3.43 | 435 | 0.294 | 225 | 9.6 | 8 |
| B1-3.43/0.49 | 1000 | 6500/1500 | 3.43 | 435 | 0.49 | 240 | 12 | 8 |
| B1-3.43/0.98 | 1000 | 6500/1500 | 3.43 | 435 | 0.98 | 305 | 18 | 8 |
| B1.5-2.35/0.294 | 1500 | 6500/1500 | 2.35 | 435 | 0.294 | 222 | 17 | 8 |
| B1.5-2.35/0.49 | 1500 | 6500/1500 | 2.35 | 390 | 0.49 | 237 | 24 | 7.5 |
| B1.5-2.35/0.98 | 1500 | 6500/1500 | 2.35 | 390 | 0.98 | 299 | 30 | 7 |
| B1.5-3.43/0.294 | 1500 | 6500/1500 | 3.43 | 435 | 0.294 | 225 | 14 | 8 |
| B1.5-3.43/0.49 | 1500 | 6500/1500 | 3.43 | 435 | 0.49 | 240 | 18 | 7.5 |
| B1.5-3.43/0.98 | 1500 | 6500/1500 | 3.43 | 435 | 0.98 | 305 | 27.6 | 7 |
| B0.75-2.35/0.294 | 750 | 3000 | 2.35 | 390 | 0.294 | 222 | 12 | 4.67 |
| B0.75-2.35/0.49 | 750 | 3000 | 2.35 | 390 | 0.49 | 237 | 12.89 | 5 |
| B1-2.35/0.294 | 1000 | 3000 | 2.35 | 390 | 0.294 | 222 | 13.5 | 7 |
- The intake and exhaust pressure is absolute pressure.
- Steam turbine weight 8.5 tons.
SUCCESSFUL PROJECTS PRESENTATION
USER: SUGAR MILL COGENERATION PROJECT, REPLACING DESUPERHEATER
MODEL: B1.6-0.98/0.4
POWER: 1600KW
INTAKE PRESSURE: 0.98MPa FROM HEAT RESOURCE
EXHAUST PRESSURE: 0.4MPa FOR PRODUCTION
GENERATOR: SYNCHRONOUS GENERATOR
