6 Inch DN150 Stainless Steel Slip on Flange Awwa DIN Soh Welding ANSI-B16.5 So Forged A105 Flange

Product Description

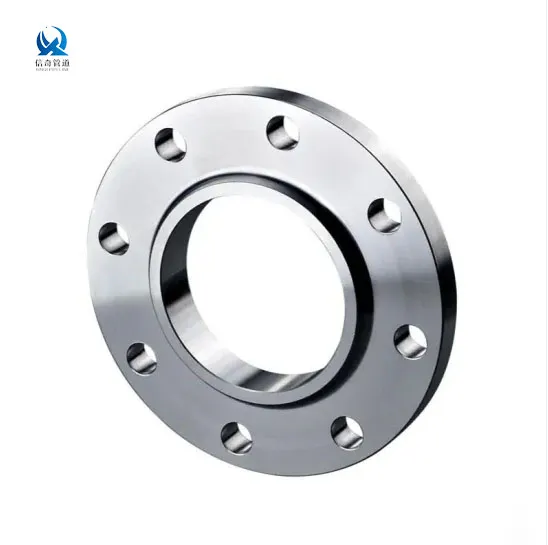

Hubbed slip on flange is also called slip on flange with hub, or Boss Slip On flange. which is a flange that extends steel pipes, pipe fittings, etc. into the flange and connects equipment or pipes through fillet welds.
Function:
The hubbed slip on welding flange is the same use as the plate flat welding flange. It is also a flange that extends steel pipes, pipe fittings, etc. into the flange and connects equipment or pipes through fillet welds.

Sealing surface type	Raised face (RF), Female and Male face (FM), Tongue face (T), Groove face (G), full face (FF).
Diameter range	DN10~DN600.
Scope of application	Class series Class150~Class1500
Flange material	carbon steel, alloy steel, 304, 316, 304L, 316L, 321, 347, CF8C.

Advantages and Disadvantages:
Advantages: The hubbed slip on flange is also named SOH flange, because it has a short neck, which improves the strength of the flange and improves the bearing capacity of the flange. Therefore, it can be used on pipes with higher pressure.
Disadvantages: The cost is higher than plate flat welding flange, and it is easier to bump due to its shape.

a) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
b) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
c) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
d) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
e) I can't see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
