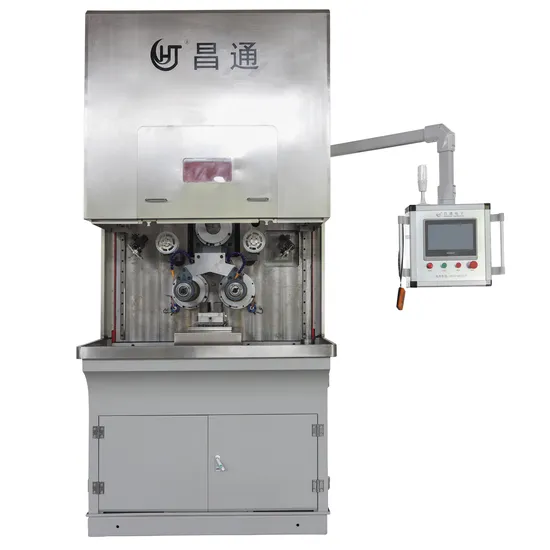

Dimond Multi-Wire Saw Cutting Machine Chtxq690f for Magnets Quartz Crystal Processing Tool

Product Description

Equipment Use: Introducing a model specifically crafted to enhance the cutting efficiency desired by our esteemed customers. This advanced machinery features a roller length of 690mm and a table size measuring 170/145mm*690mm*160mm*2 version, perfect for precision cuts on products ranging in thickness from 0.3mm to 65mm.
CHTXQ-690F Double Plate Multi-Wire Cutting Machine - Product Features
1. Engineered for excellence, four independent motors power the four rollers, transforming them into drive shafts. This innovation minimizes steel line wear on the rollers and optimizes roller usage. The precision-crafted roller bracket mounting hole, created with a processing center molding, ensures impeccable spindle installation and alignment.
2. Elevate your experience with our optional LED display, offering cutting data at a glance and enhancing user interface intuitiveness.
3. Ingeniously designed, the material is cut from the bottom up under the table, streamlining the process of loading and unloading.
4. Versatility redefined, the machine is available in both high-speed and standard models. The high-speed variant delivers superior line speed and cutting efficiency, enabling it to handle thinner diamond lines when cutting identical materials.
5. Featuring a table with transverse movement capability, it allows for back-and-forth adjustments, ideal for tile cutting and achieving single-line cutting functionality.
6. Experience expansive cutting capacity with a generous loading area of 170/145mm*690mm*160mm*2 version, significantly boosting cutting efficiency.
7. Precision is paramount, with spindle accuracy maintained at ≤0.01mm. The patented structure dust (No. ZL201320681902.7) ensures stable operation and easy disassembly.
8. User-friendly design, featuring an automatic lifting shield and fully expanded workbench, simplifies the loading and unloading of materials and rolls.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This sophisticated machine is a double-station multi-wire cutting system, utilizing diamond wire to process products. Capable of handling two plate materials in one go, with a roller length of 690mm and a maximum cutting area of 220mm*690mm*160mm*2 version. Equipped with a rotary tool holder function, it accommodates blade thicknesses from 0.5mm to 65mm, offering both single and multi-line cutting, perfect for batch processing of hard and brittle materials.
Here lies a model that epitomizes cutting-edge technology in multi-line cutting with diamond line processing. It boasts a roller length of 570mm and a generous maximum cutting area of 220mm*570mm*160mm. Designed for 0.3mm to 65mm product thickness, it enables seamless slicing and is ideal for batch processing of hard and brittle materials.
Introducing a compact marvel in multi-line cutting technology, this small machine, available in single and double station models, is tailored for small-batch straight sheet processing. With effortless product specification replacement, it offers cutting thicknesses from 0.5mm to 30mm, providing both single and multi-line cutting functionalities for hard and brittle materials.

>Stable Wire Web Control
Our rollers and wire spools feature a cone-positioned structure, combining high accuracy and high rigidity to effectively mitigate wire web shaking.
>Optimized Pulley System
Our innovative 8-pulley design dramatically reduces diamond wire torsion, minimizes tension fluctuations, and decreases wire breakage rates.
>Easy Wire Winding
The wire pay-off wheel is equipped with a standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding, thus enhancing user convenience.
>Safety Guarantee
Safety is paramount, with the main operation door electrically operable, complemented by robust safety devices for user protection.
>Wire Break Memory System.
>Easy Operation
Experience hassle-free operation with our cutting room, accessible from three sides, ensuring effortless maintenance and usage.
